The Rogue Audio RP-5 is the kind of full-function tube preamplifier that earns a permanent spot in the rack and rarely gets challenged. Four 12AU7s in a mu-follower topology give it that characteristic tube warmth and midrange bloom without getting wooly — vocals breathe with real presence, acoustic instruments carry genuine body, and the top-end stays airy and open rather than clinical. It's quietly full-featured too: a versatile MM/MC phono stage with four user-adjustable gain settings, a genuine tube-based headphone circuit, home-theater bypass, processor loop, and a ten-function remote that means you rarely have to leave your chair. Made by hand in Brodheadsville, Pennsylvania. TAS Product of the Year. Easy to understand why — it does everything without calling attention to the fact that it's doing anything.
Production
2015-2023
Condition
Cosmetic 9/10 - Electronic 10/10
Serial No.
RP5-0706
Orig. MSRP
$3,495
Restoration

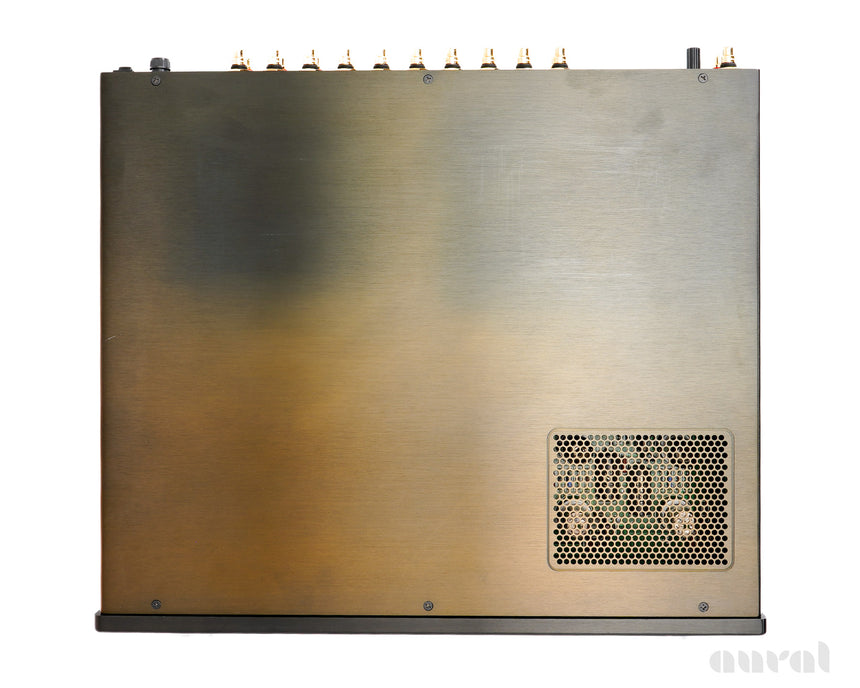

- Some discoloration of anodized top due to heat
- All ins and outs verified
- Volume and balance encoders good, buttons and lights functional, display is good
- Remote button labels worn
- Cleaned and lubricated all controls
- Thoroughly detailed
Factory Specs
Tube Complement 4 × 12AU7/ECC82
Frequency Response 1Hz – 100kHz, ±1dB
THD <0.1%
Gain (Line Stage) 10dB
Rated Output 1V RMS
Maximum Output 27V RMS
Output Impedance 500 Ohms
Volume Control Stepped attenuator, 60 steps in 1dB increments
Balance Control Stepped attenuator, 1dB steps; each channel attenuable to -65dB (final step -90dB mute)
Gain (Phono Stage) 40dB, 50dB, 55dB, 60dB (user-adjustable)
RIAA Accuracy ±0.1dB
Cartridge Loading User-adjustable (MM and MC)

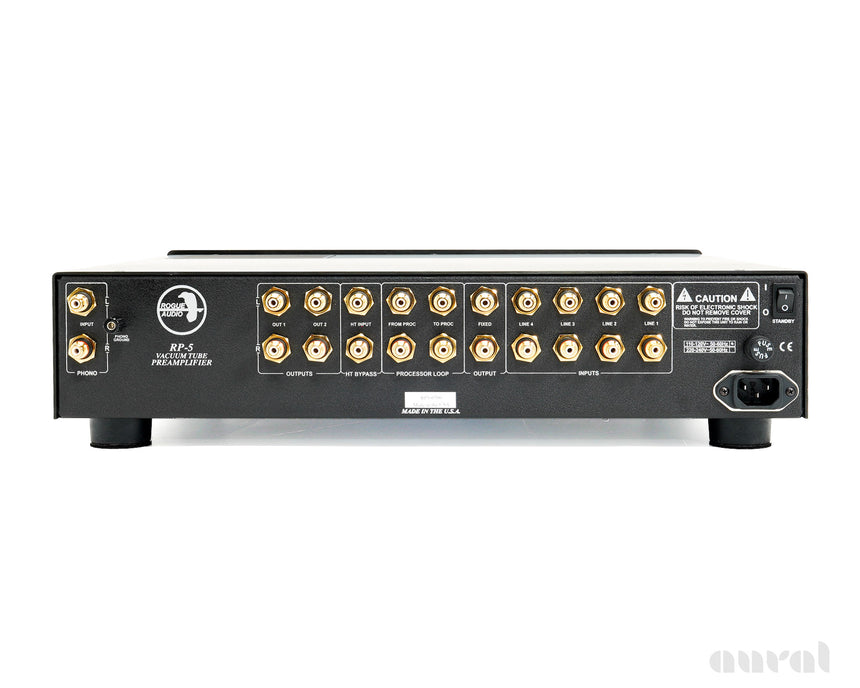

Inputs Five pairs: Line 1–4 + Phono (configurable as Line 1–5 if phono not used)
Variable Outputs Two pairs
Fixed Outputs One pair
Headphone Output Tube-based circuit, 1/4" jack (front panel)

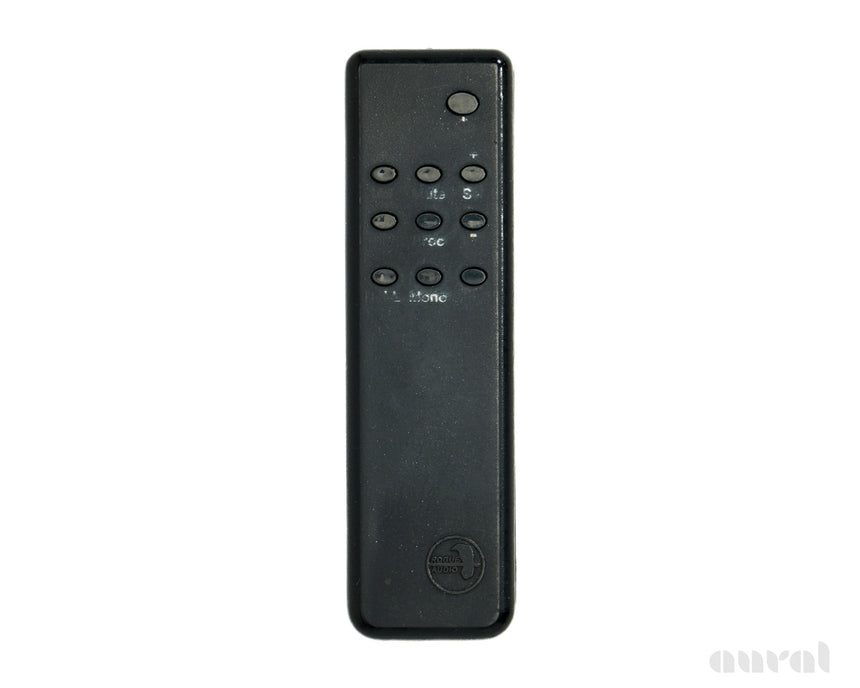

Remote Control 10-function (volume, balance, selector, mute, mono, on/off)
Display VFD (Vacuum Fluorescent Display), defeatable
Power Requirements 115/230V, 50/60Hz
Fuse 1.25A slow-blow (located on left rear of main circuit board)
Dimensions 18.5" × 4.5" × 17" (W × H × D)
Weight 30 lbs
Documentation
Rogue Audio RP-5 Owner's Manual
Liner Notes
The RP-5 is our first preamplifier based on the groundbreaking new RP-X platform. Silky smooth yet extraordinarily high tech, the RP-5 sets a new benchmark in performance and functionality. Utilizing four 12AU7 tubes in a mu-follower configuration, the computer optimized circuitry boasts outstanding sonics as well as industry leading specs.
The RP-5 offers much more than just sonic excellence with numerous features to further enhance your listening experience. The onboard MM/MC phono has user adjustable gain settings ranging from 40 to 60 dB. A wide variety of loading options means your favorite cartridge can be configured to sound its very best. A tube based headphone circuit offers smooth and detailed sound for your late night personal audio sessions. Other features include home theater inputs, a processor loop and mono button. The ten button remote allows you to conveniently access volume, balance, selector, mute, mono and on/off from your listening position.

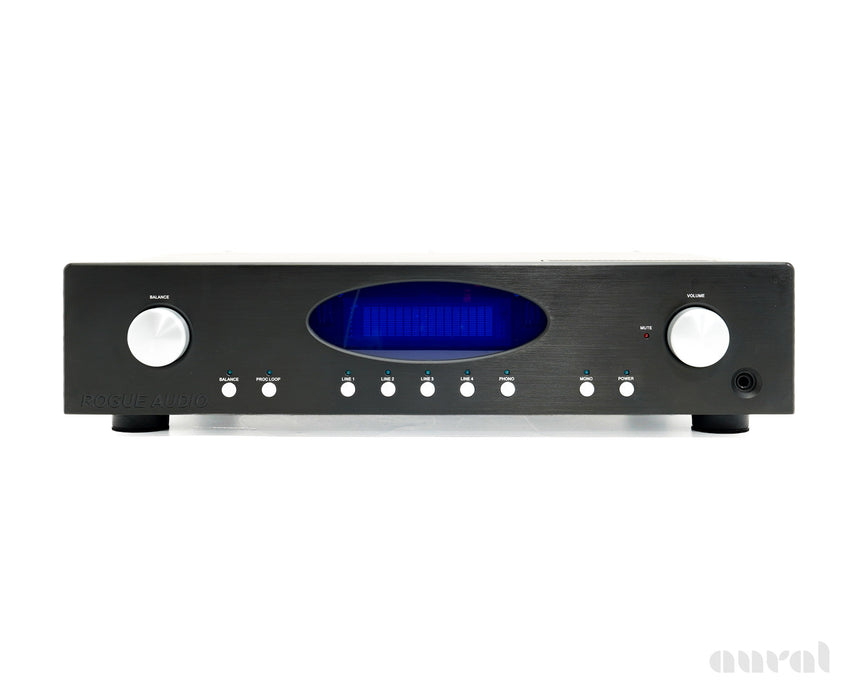

The elegant appearance of the RP-5 is enhanced by an easy to read VFD display that provides volume, balance and source information in large easy to read characters.
