If the Marantz 2230 were a person, it’d be the chill, old-soul friend who shows up with a crate of vinyl, pours you a bourbon, and puts on some Bill Withers. This thing doesn’t just play music — it feels it. Born in the early ‘70s, the 2230 is everything we love about vintage hi-fi: warm sound, sexy looks, and just enough power to fill your room without shaking the walls off.
- Production
- 1972-74
- Condition
- 9/10
- Serial No.
- 2495
- Orig. MSRP
- $349.95
- Restoration
- Replaced tuner backlight and input bulbs/lights
- Verified ins and outs
- Cleaned/dusted internals
- Cleaned all pots and switches
- Factory Specs
Type Solid State Receiver
Tuning range AM/FM
Power output 30 watts per channel into 8Ω (stereo)
Frequency response 15Hz to 50kHz
Total harmonic distortion 0.5%
Damping factor 45
Input sensitivity 1.8mV (MM), 180mV (line)
Signal to noise ratio 83dB (line)
Channel separation 35dB (line)
Speaker load impedance 4Ω to 16Ω
Dimensions 17.3"W x 5.5"H x 14"D
Weight 29 lbs.
- Documentation
Marantz 2230 Owner's Manual
- The History of Marantz
- More than any other person, Saul Marantz defined premium home entertainment. Driven by his passion for music and his accomplishments as a classical guitarist – accomplishments that led to a close friendship with Andres Segovia – he was never satisfied with the “hi fi” equipment of his day. So he built better; first in...
[ Read More ]
- Liner Notes

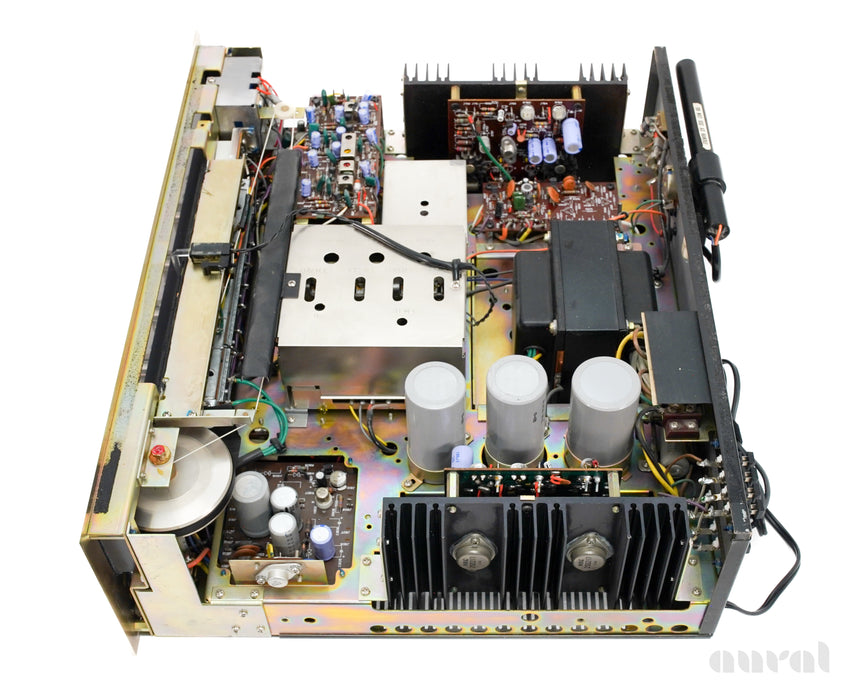

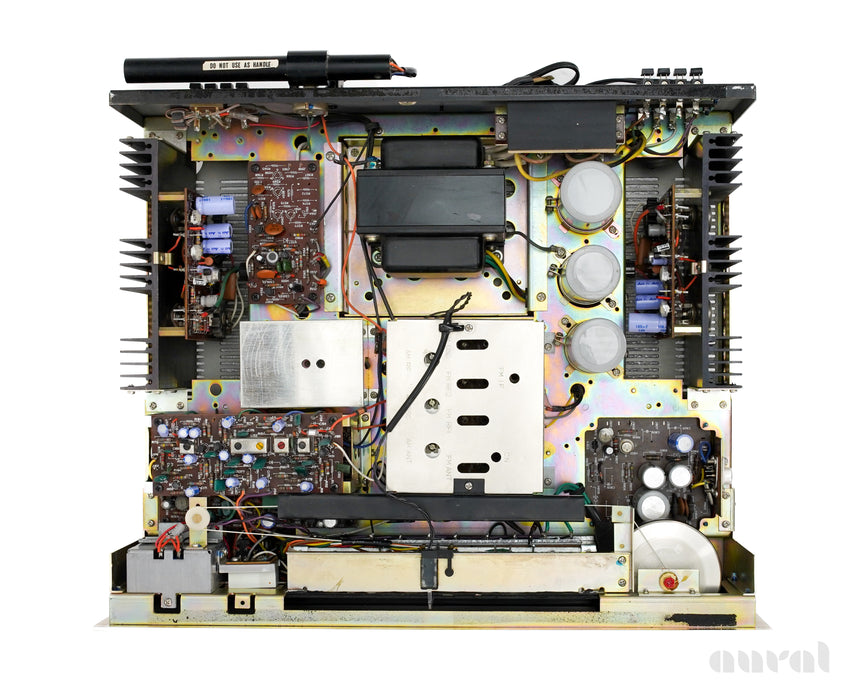

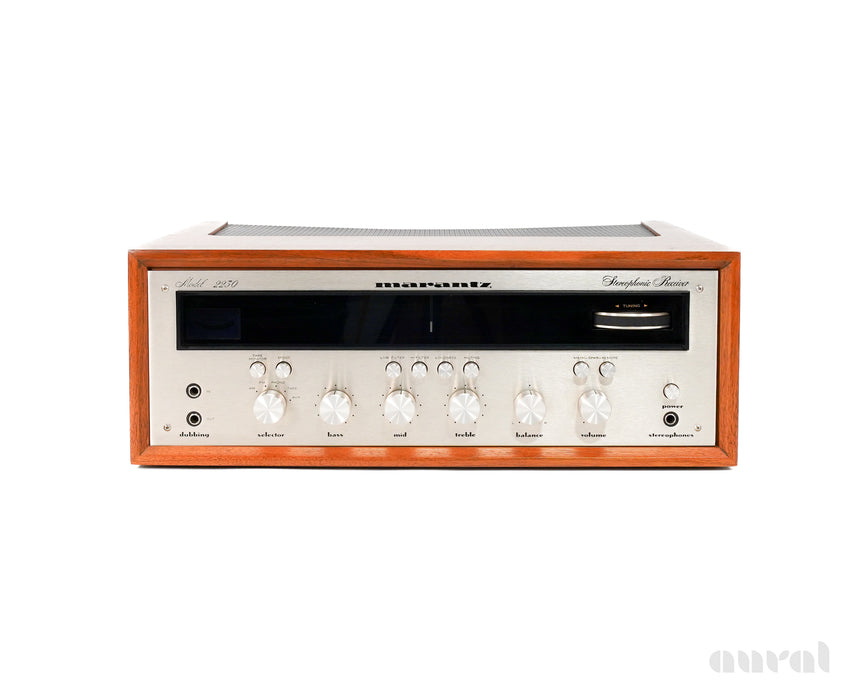

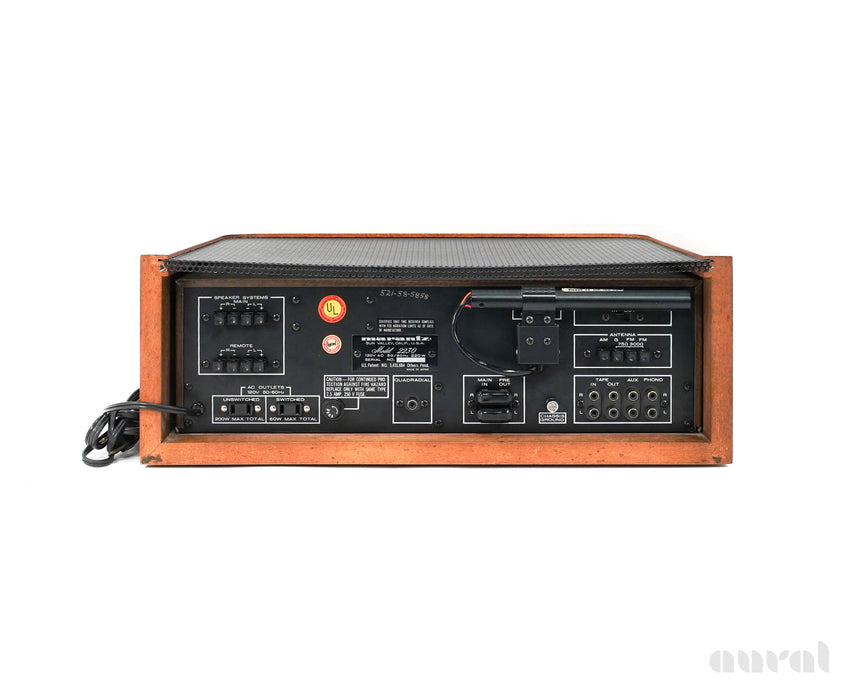

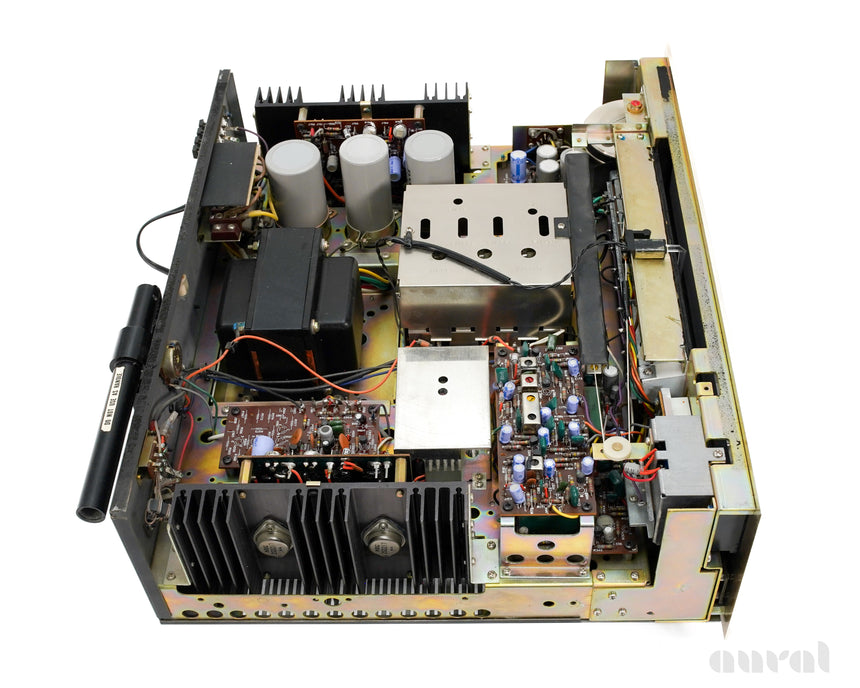

Best in its class. With impressive specifications and Marantz-exclusive features, the Model 2230 offers more value and performance than any other receiver in its class. We’ve known that for years. But just recently, one of the nation’s most respected independent consumer testing organizations verified it. In not one, but two separate categories — features and performance. It delivers 60 Watts continuous power, both channels driven, from 20 Hz to 20 kHz with total harmonic and inter-modulation distortion well under 0.5%. Stepped, three-zone tone controls for BASS, MID, TREBLE. Provisions for tape decks, phones, record changers and 4-channel adaptors. Ultra low-distortion FET, RF and IF circuitry. Massive heat sinks; automatic protection for internal circuitry and associated speakers, plus the famous Marantz gold-anodized front panel. Looking for a moderately priced receiver? The Marantz 2230 out-does them all.
- Packing
- We'll deliver this piece in its original factory box, so you can be sure it will be protected just as Marantz intended.
- Shipping
- This piece ships to the contiguous United States for a flat rate of $150, which includes our packaging and our insurance. Of course, we'll ship anywhere in the world, just drop us a line and we'll give you an estimate – even if you're just curious.
- Stock No.
- 8975218442461
