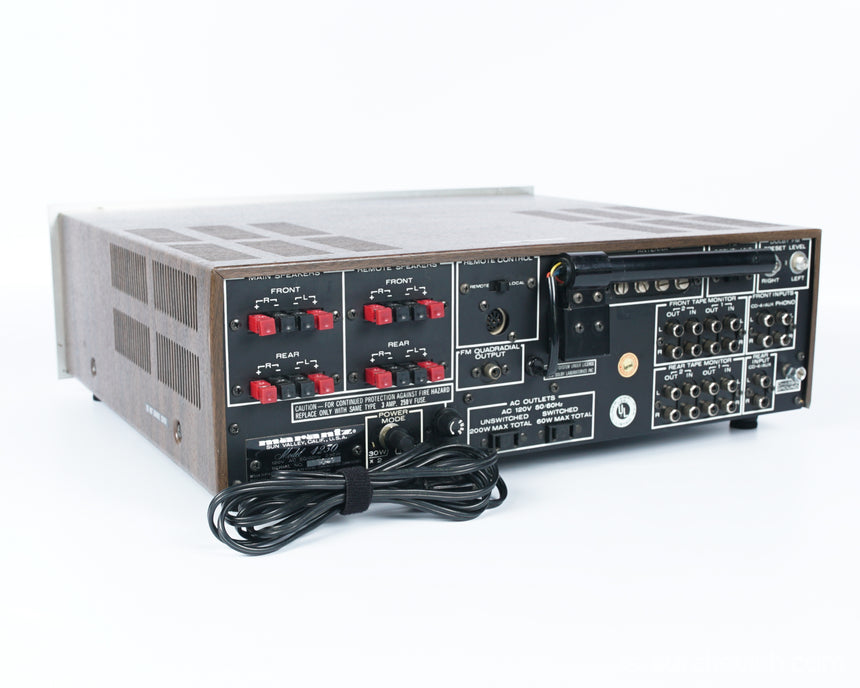

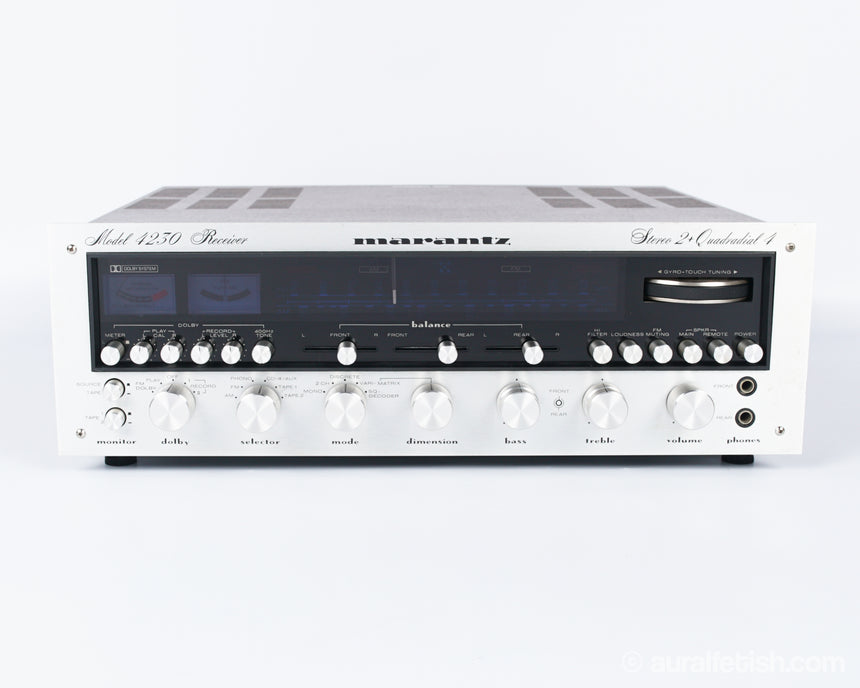

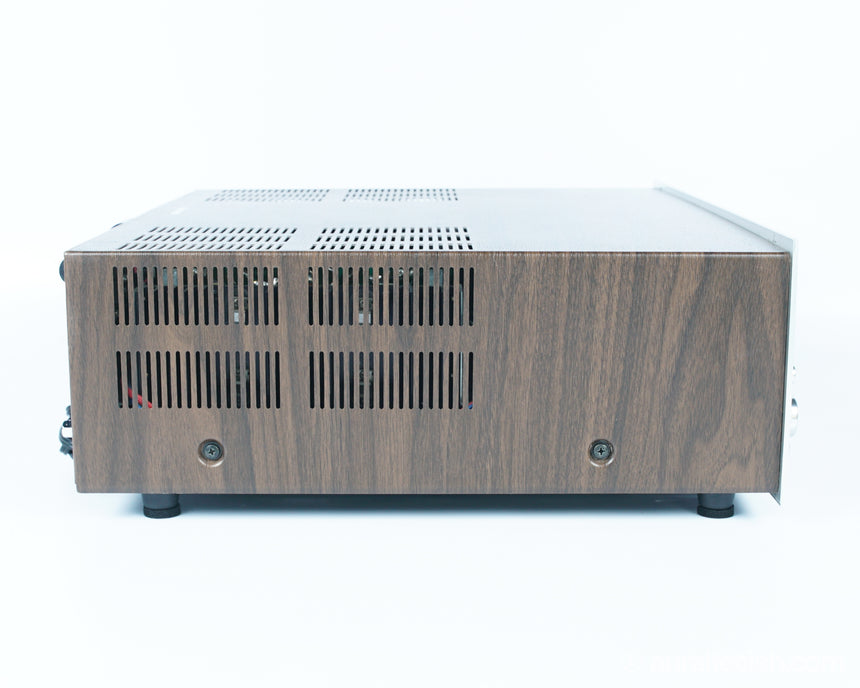

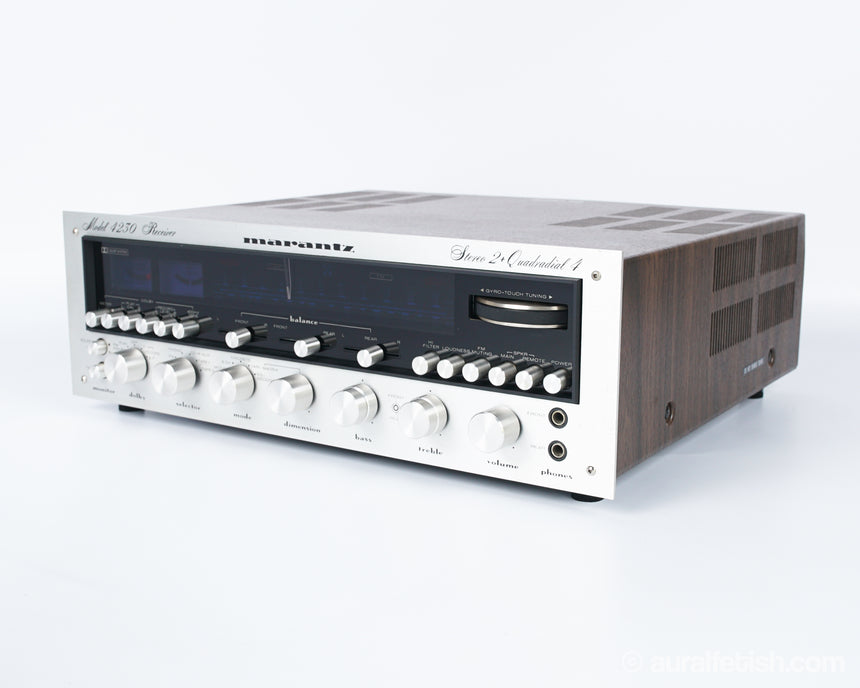

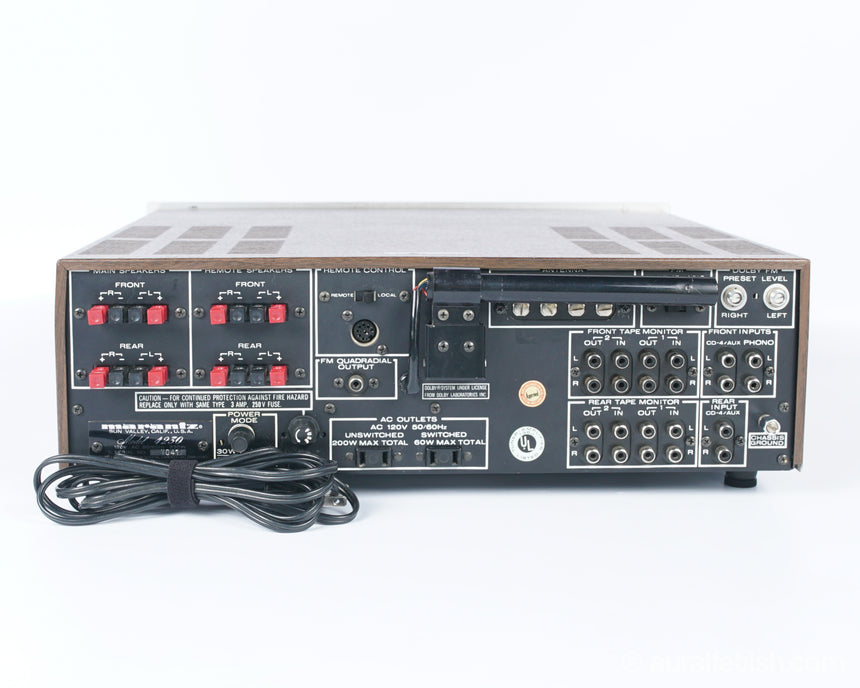

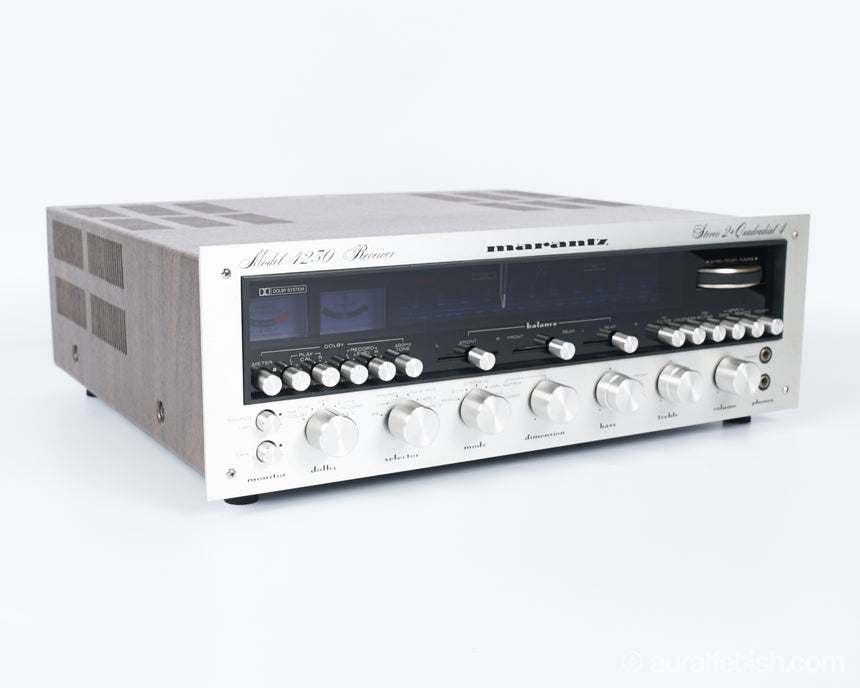

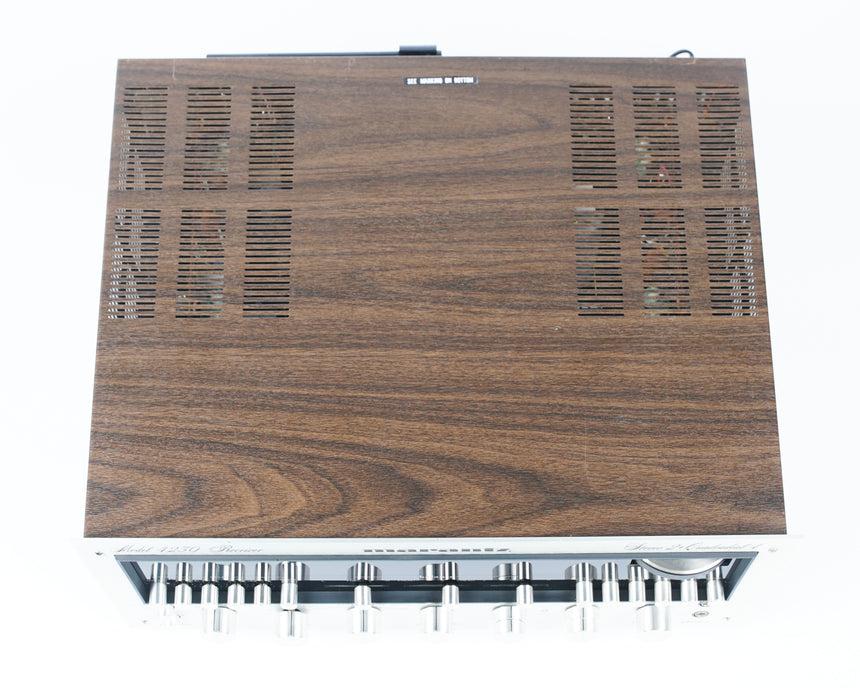

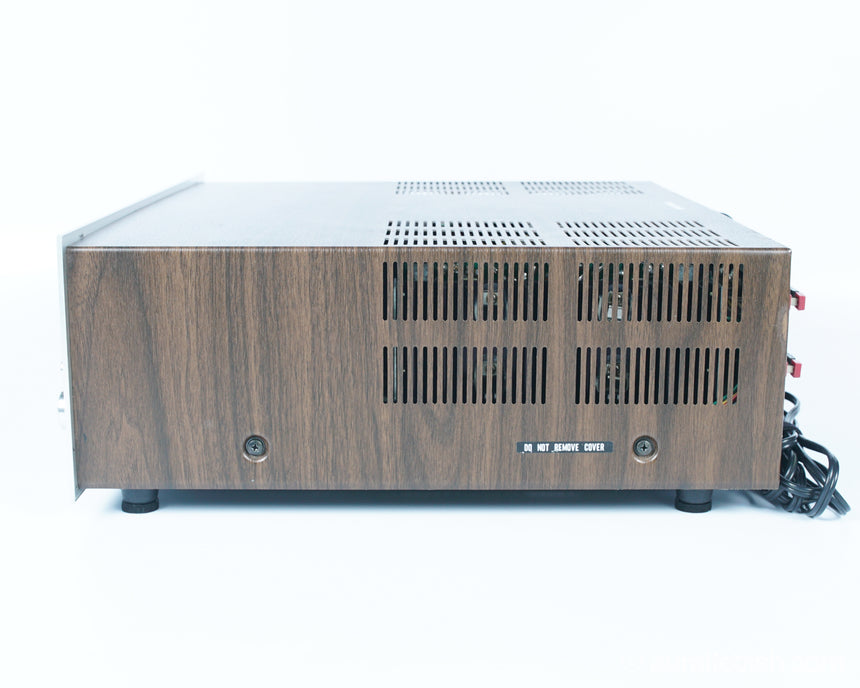

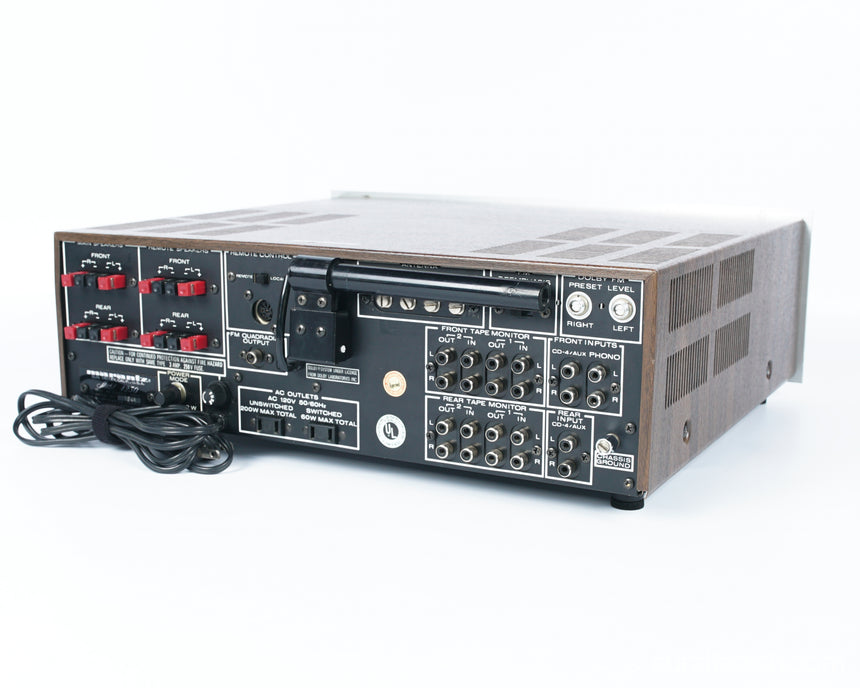

Name: Marantz 4230 // Quad Solid-State Receiver
Brand: Marantz
SKU: 7438282096861
Availability: OutOfStock

Get the full power of four discrete amplifiers at your disposal. It's an excellent 2-channel stereo amplifier allowing you to funnel the power of all four amplifiers to two speakers. Flip a switch, and send that signal to four channels. This is probably one of the most versatile quad receivers out there.

Production

1973-77

Condition

9/10

Serial No.

7041.0

Orig. MSRP

$499.95

Restoration

Full service check
Tests beautifully
Cleaned controls, switches, and chassis

Factory Specs

Number of Channels 4

Power 30 WPC into 2ch at 8Ω; 12 WPC into 4ch 8Ω

Intermodulation Distortion (SMPTE) < 0.9%

Damping Factor 20 at 20 Hz (stereo); 40 at 20 Hz (quadrophonic)

Input Impedance Phono 47k Ω

Input Sensitivity 2.2 mV( phono); 150 mV (high level)

Phono Frequency Response 30 Hz - 15 kHz, ±1 dB (RIAA)

FM Tuning Range 88 MHz - 108 MHz

FM Usable Sensitivity (IHF) 3.5 uV at 30 dB; 50 uV at 70 dB

FM Selectivity (IHF) 48 dB

FM Capture Ratio 3.0 dB

FM Image Rejection Ratio (106 MHz) 50 dB

FM Total Harmonic Distortion Mono: 0.6%; Stereo: 0.8%

FM Frequency Response ±2 dB, 30 Hz - 15 kHz

FM Stereo Separation 40 dB @ 1kHz; 26 dB @ 10kHz

FM Quadradial Output 300 mV, 15k Ω

AM Tuning Range 540 kHz - 1605 kHz

AM Usable Sensitivity 25 uV

AM Selectivity 25 dB at 1000 kHz

AM Image Rejection Ratio (1400 kHz) 45 dB

AM Bandwidth (-6 dB) 7 kHz

Power Consumption 230 Watts (at rated power); 33 Watts (idle)

Dimensions 17-21/64 x 5-25/64 x 14-3/8 in.

Weight 31.3 lb.

Documentation

Marantz Model 4230 Owner's Manual
