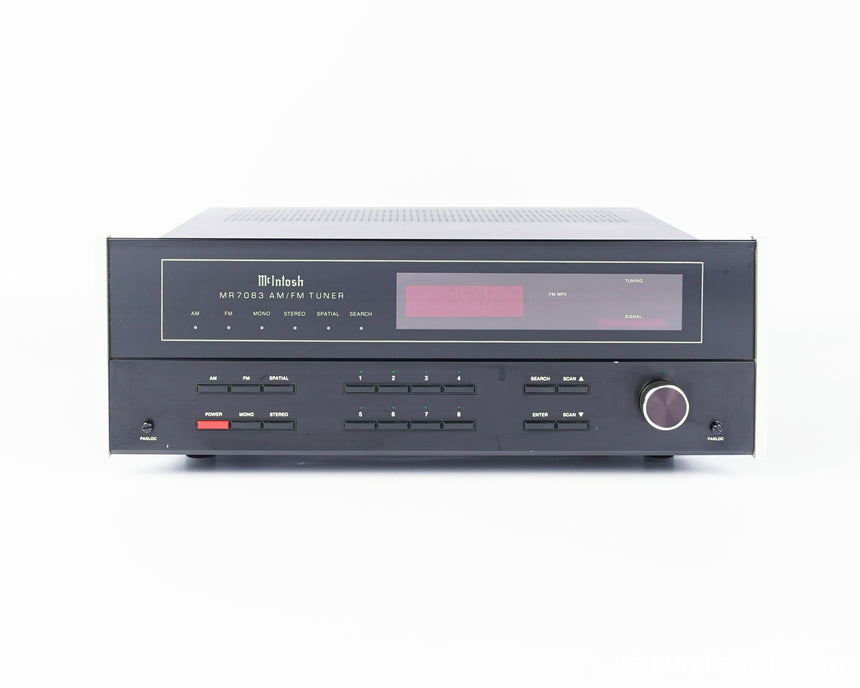

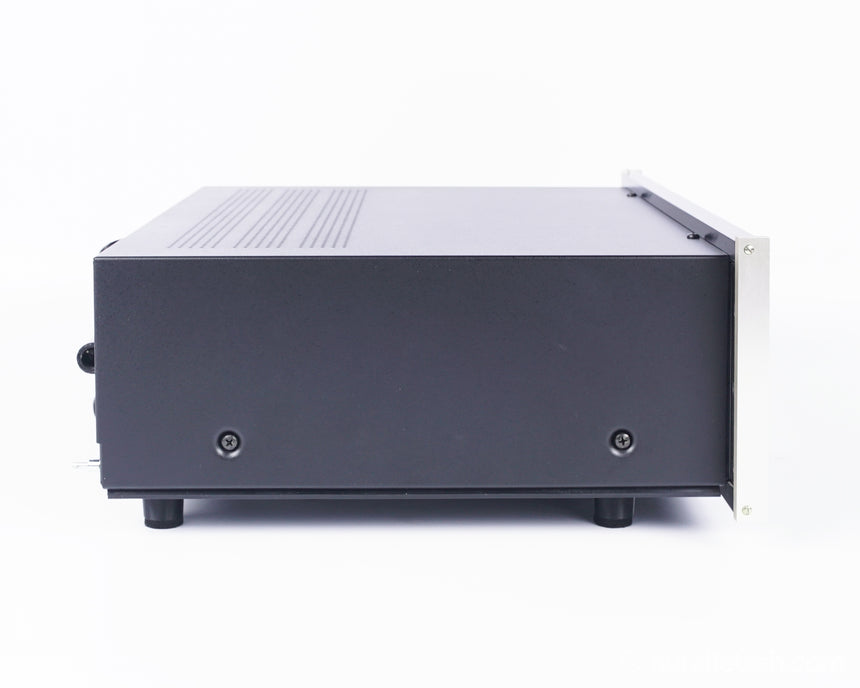

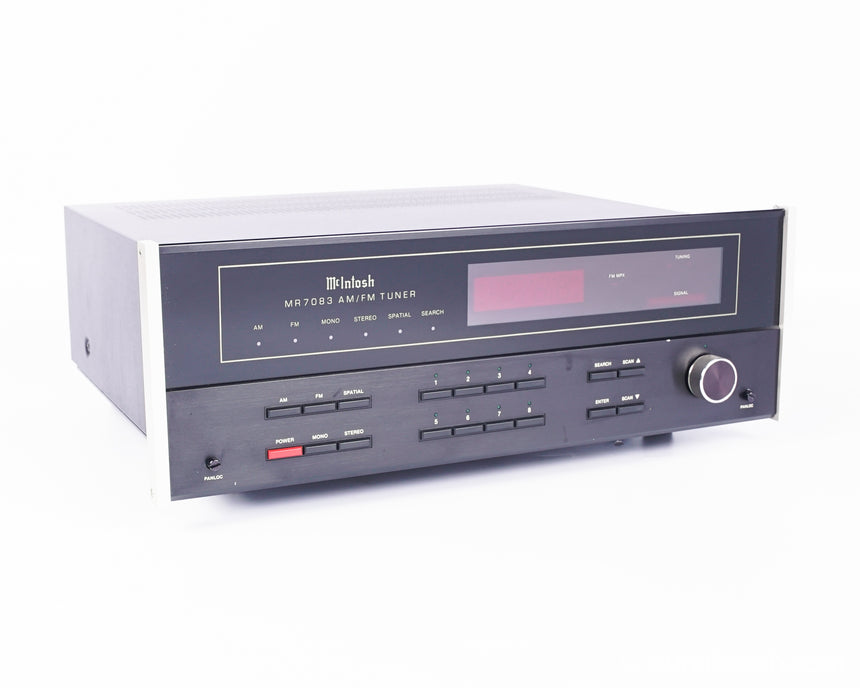

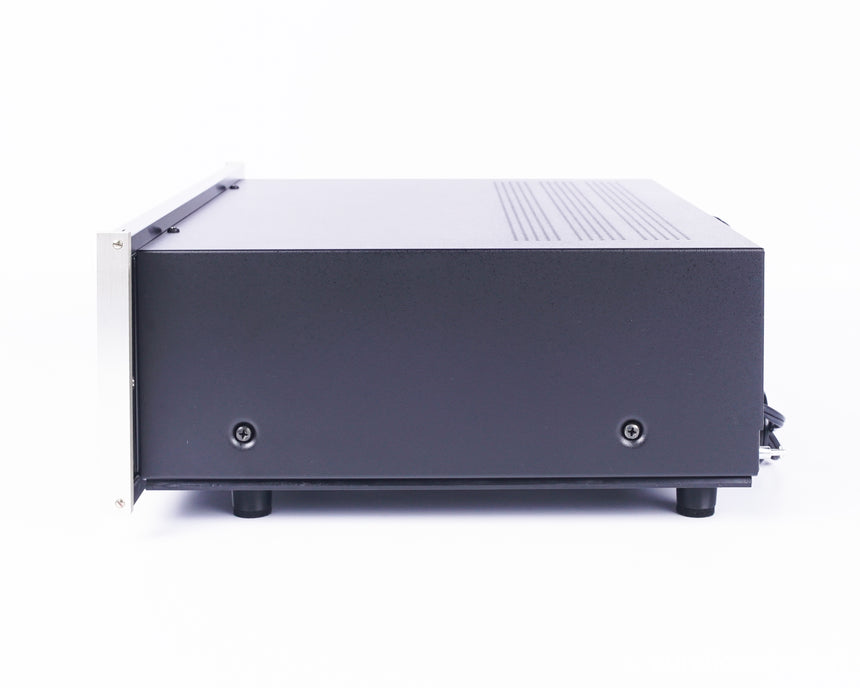

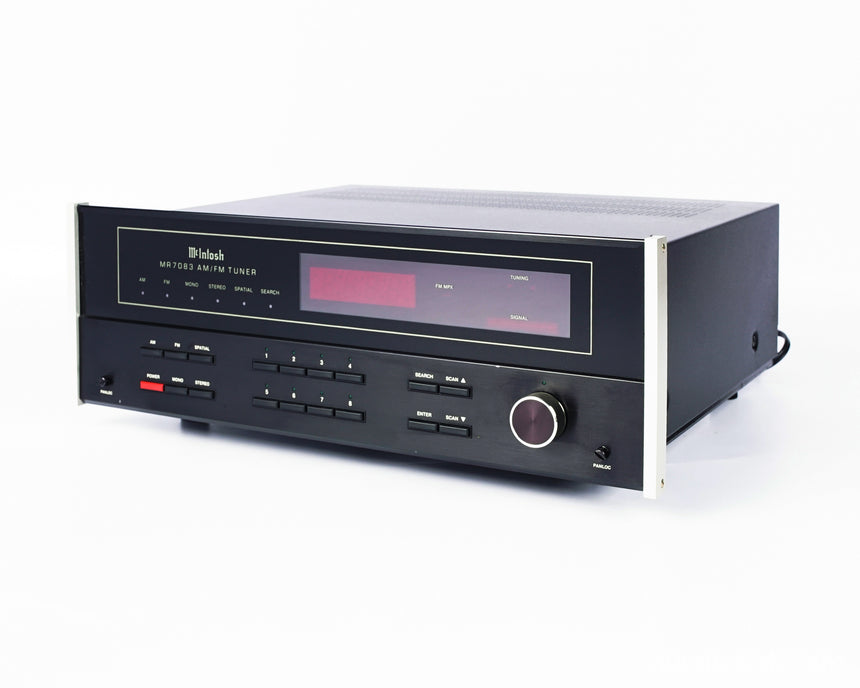

Name: Vintage McIntosh MR7083 // Solid-State Tuner / with Manual
Brand: McIntosh
SKU: 7505476911325
Availability: OutOfStock

Crisp lines, intuitive controls, and most importantly great reception. When considering a tuner, how important are reputation and dependability? If you're in the market for the best, you're shopping for a McIntosh.

Production

1990-95

Condition

9/10

Serial No.

FR1713

Orig. MSRP

$1750

Restoration

Full service check
Cleaned controls, switches, and chassis
Reseated selection pot to ensure accurate and responsive tuning.

Factory Specs

FM SECTION

Usable Sensitivity 11.25 dBF which is 1.0 μV across 75 ohms

50db Quieting Sensitivity 15 dBF which is 1.6 μV across 75 ohms (mono); 37 dBF which is 20 μV across 75 ohms (stereo)

Signal To Noise Ratio 80 dB (mono); 75 dB (stereo)

Frequency Response 20 to 15,000 Hz (+ 0, -1dB) (mono/stereo)

Harmonic Distortion 0.08% at 100 Hz; 0.08% at 1000 Hz; 0.12% at 10,000 Hz

Intermodulation Distortion 0.08% (mono); 0,12% (stereo)

Capture Ratio 1.5 dB

Alternate Channel Selectivity 70 dB

Spurious Response 100dB

Image Response 80 dB

Stereo Separation 50 dB

AM SECTION

Sensitivity AM 20 μV external antenna input (50 ohm source input)

Signal To Noise Ratio 50 dB at 30% modulation; 60 dB at 100% modulation

Harmonic Distortion 0.5% maximum at 30% modulation

Frequency Response 50 Hz to 6,000 Hz NRSC

Adjacent Channel Selectivity 45 dB minimum IHF

Image Rejection 78 dB minimum

GENERAL INFORMATION

Audio Output 1.2 V RMS at 100% modulation (Fixed); 1.2 mV to 1.2 V at 100% modulation (Variable)

Semiconductor Complement 37 Transistors; 28 Integrated Circuits; 8 Varactors; 53 LEDs; 74 Diodes;

Power Requirement 120V 50/60Hz

Power Consumption 10 watts

Dimensions 16W" x 5.5H" x 13D"

Finish Front panel is glass with special gold/teal nomenclature illumination and black with gold anodized aluminum. Chassis is black.

Cabinet Fits L52

Weight 15½ lbs. net

Documentation

MR 7083 Owner's Manual

The History of McIntosh

Founded in 1949, McIntosh is known for offering distinguished home audio systems that deliver the ultimate experience in music and film. Offering products for two-channel stereo sound systems and multi-channel home theaters with surround sound, McIntosh continues to define the ultimate home audio entertainment...
[ Read More ]

Liner Notes

Some of the features that set the MR 7083 apart from the ordinary are:

The advanced AM/FM tuner design of the MR 7083 displays the station frequencies digitally. Stations are selected easily in any one of these ways:
A. use the manual tuning knob, B. use the SCAN up or down touchbuttons, C. use the preset station touchbuttons or, D. use the SEARCH which will preview the preset stations for 5 seconds each.
The sound enhancing SPATIAL audio processor provides an aural picture that is more "stereo like" in quality and dimension. On noisy, weak FM stations or AM stations, SPATIAL provides reduced noise and retains a broad stereo-like sound.
High quality tape recordings of FM broadcasts can be made without the interference that stereo transmissions can cause. Carefully designed suppression circuits eliminate the potential for stereo carrier noise when making "off the air" tape recordings.
A unique Phase Locked Loop Multiplex decoder delivers STEREO FM with lower distortion, lower noise, and better separation.

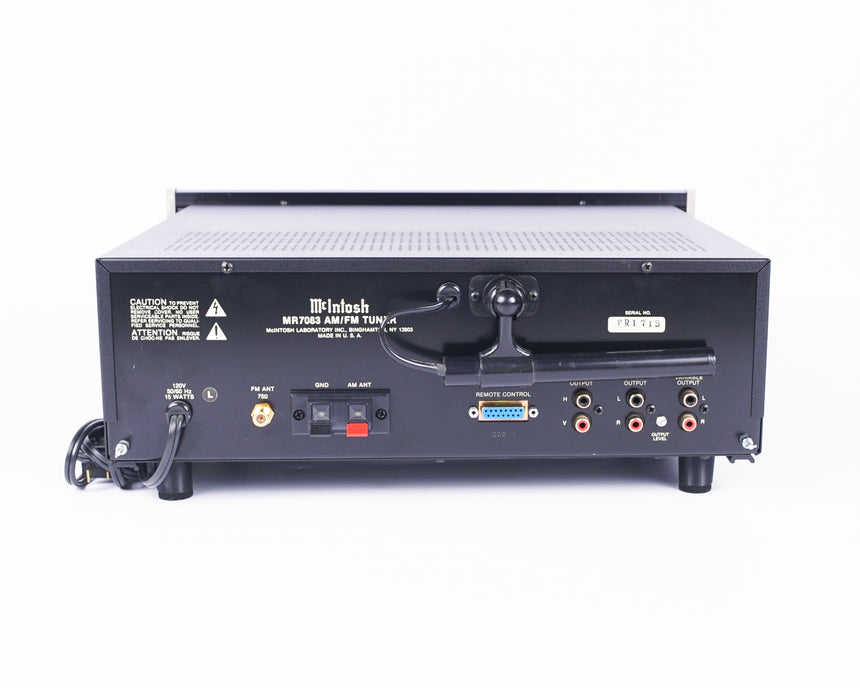

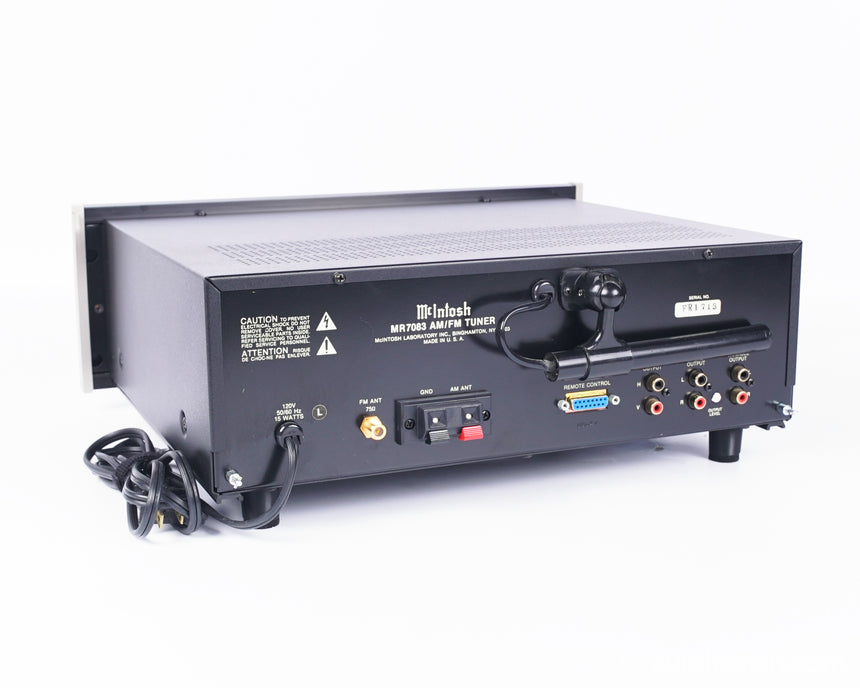

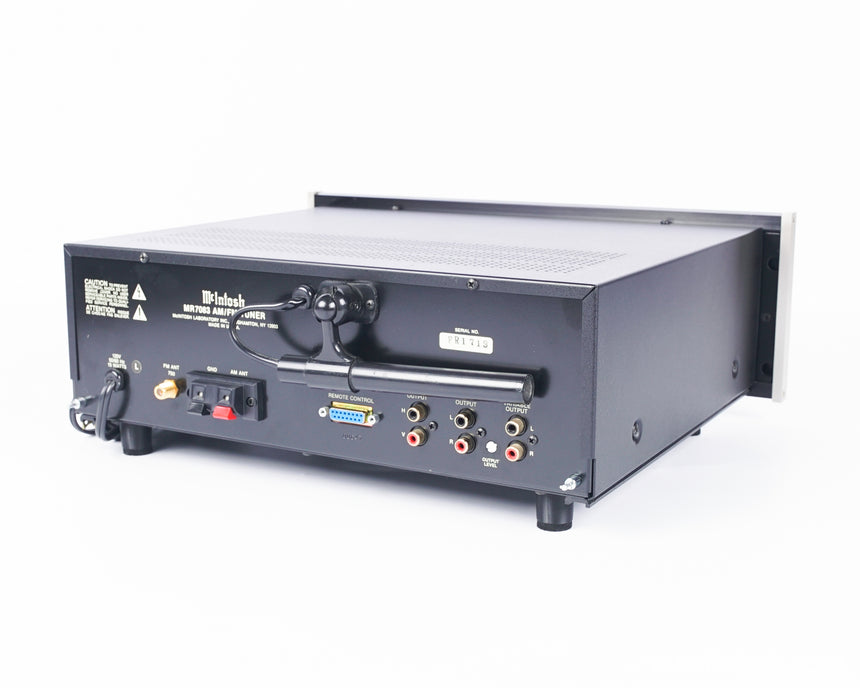

The most useful and flexible AM antenna system will suit your particular installation. A low-impedance loopstick will, in most local areas, provide AM signals while rejecting noise and interference. In noisy AM locations, an external noise reducing, noise canceling, shielded loop will provide ideal input signal. In a remote location, a conventional 'long wire' antenna can be used.
The MR 7083 can be remote controlled from a Mclntosh IR Remote Control system.

All in all, your selection of the MR 7083 will be reinforced by your day-to-day use of this superb instrument. Good listening.

-stereonomono
