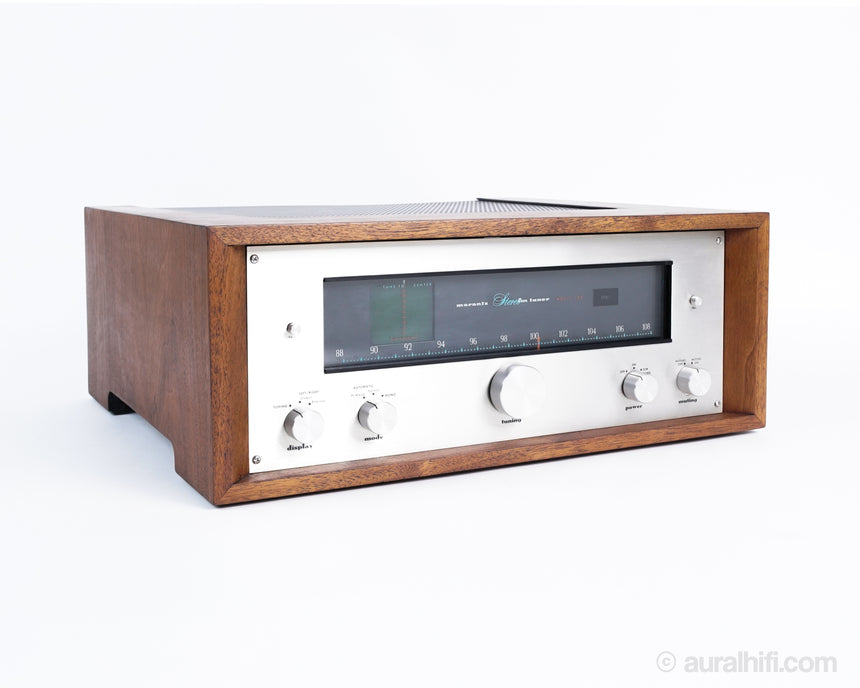

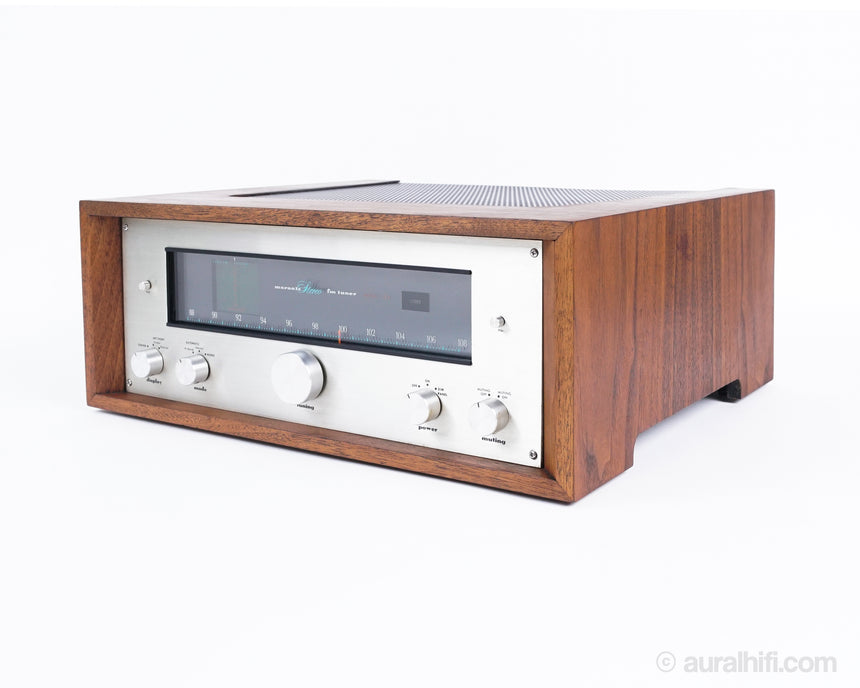

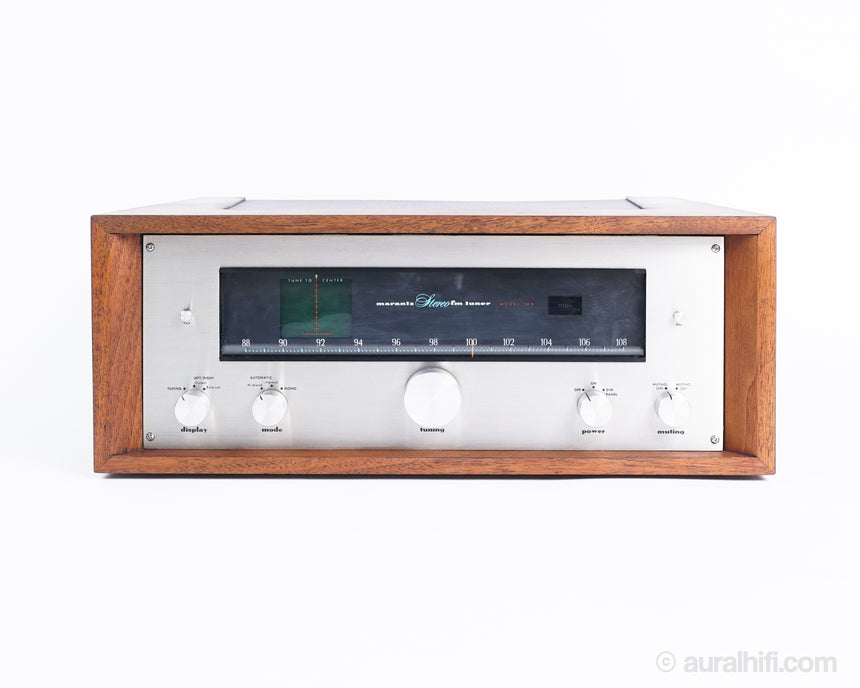

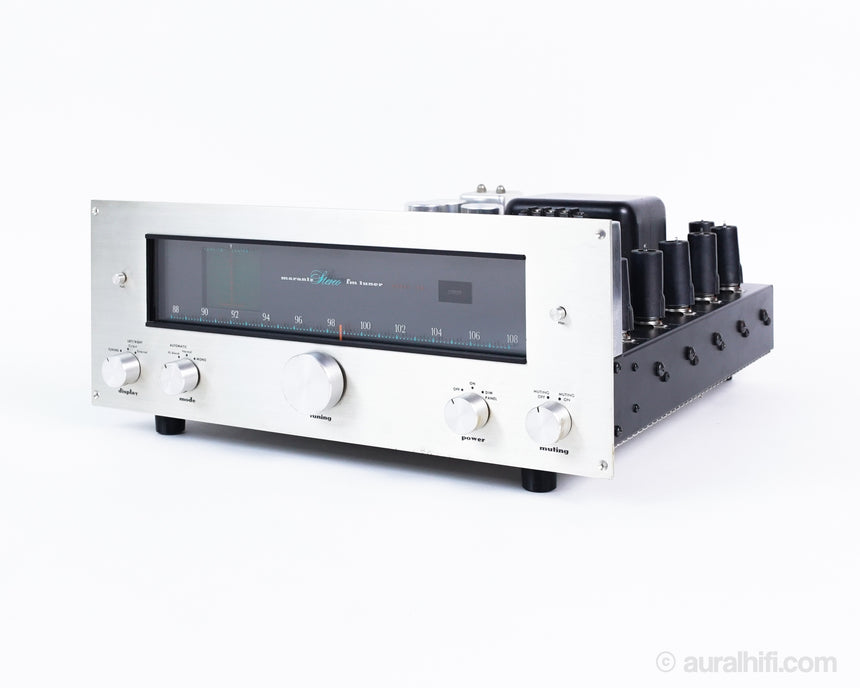

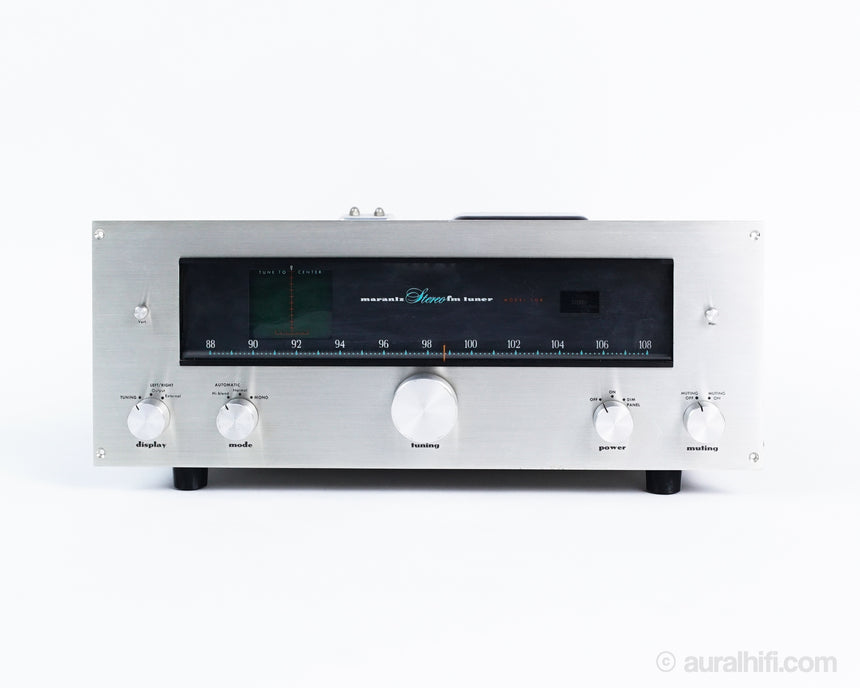

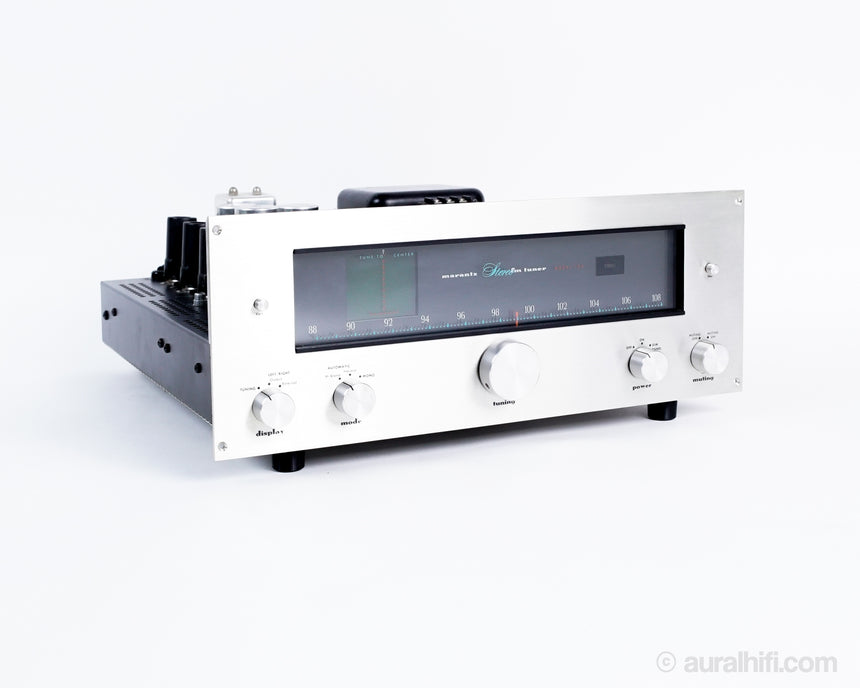

Name: Vintage Marantz 10B // Tube Tuner / Owner's Manual / Cabinet
Brand: Marantz
SKU: 7708060090589
Availability: OutOfStock

Widely considered to be one of the holy grails of tube tuners, this spectacularly clean example makes this 10b potentially a once in a lifetime find. Owner's manual & service manual included.

Production

1966-68

Condition

9/10

Orig. MSRP

$650

Restoration

Full 30-point service check
Tested all tubes, replaced 6JK6
Aligned scope (tube shows age but works well)
Sensitivity and calibration are good
Aligned MPX for minimum distortion (separation is 45 dB)

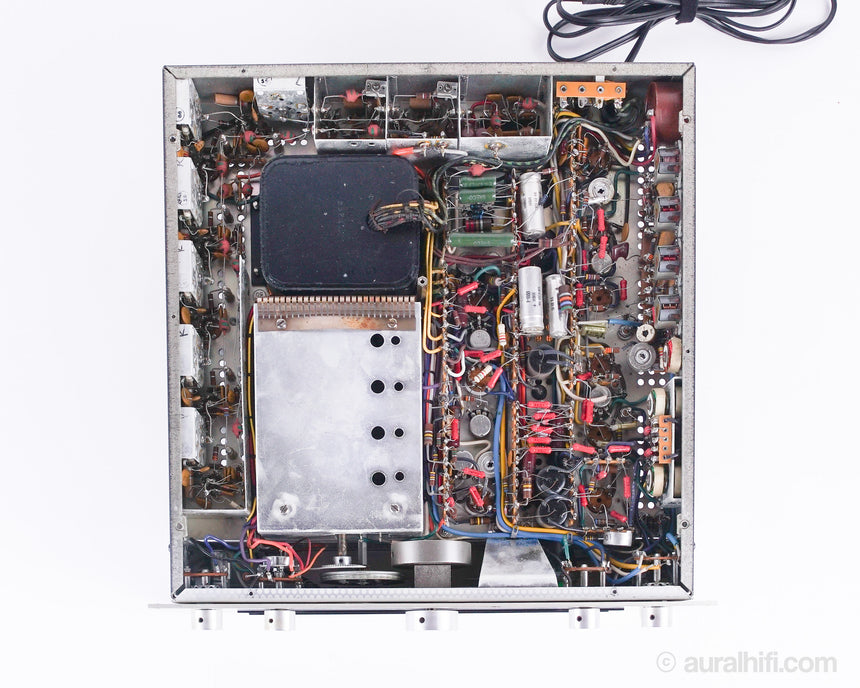

Cleaned sockets, controls, switches, and chassis

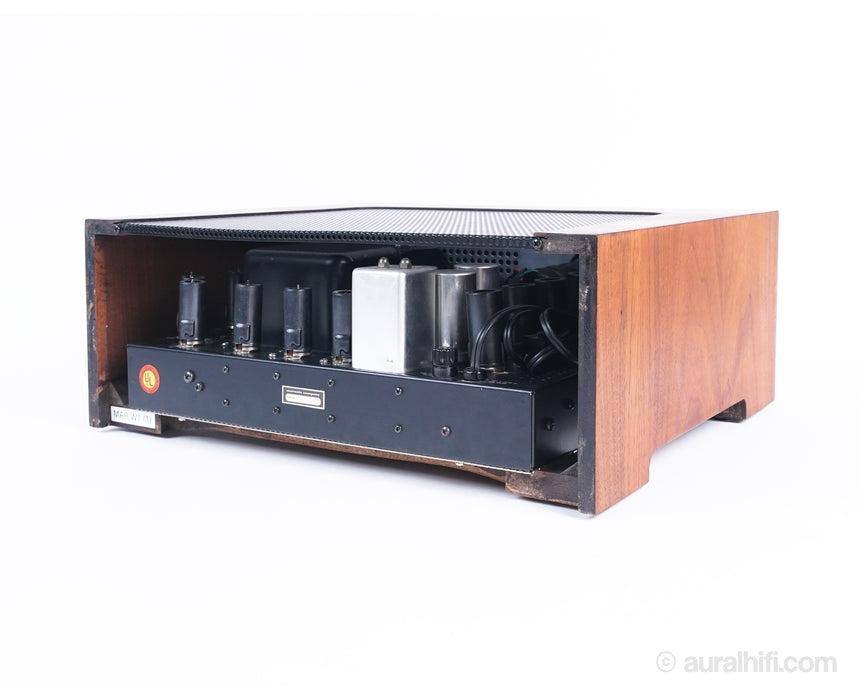

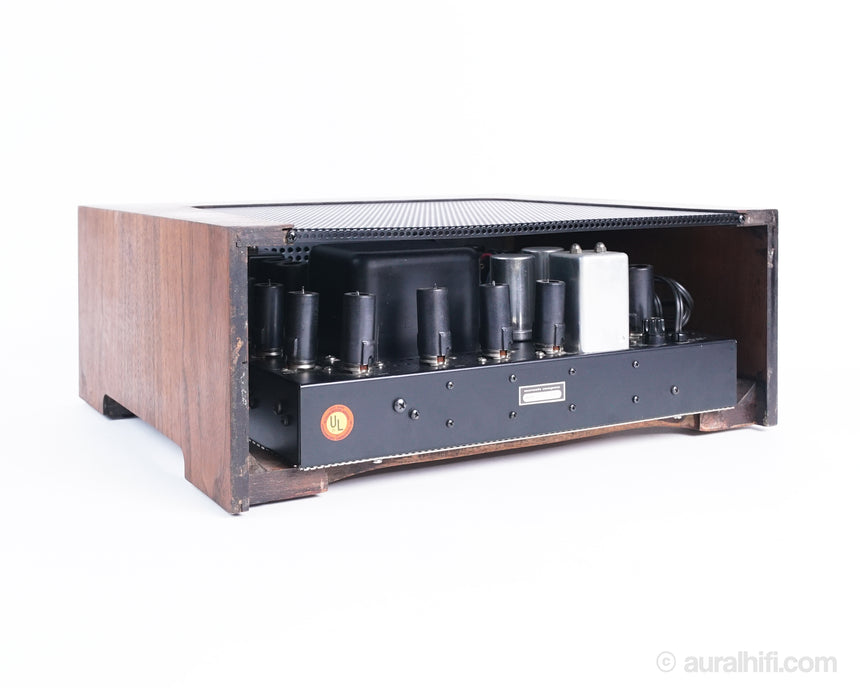

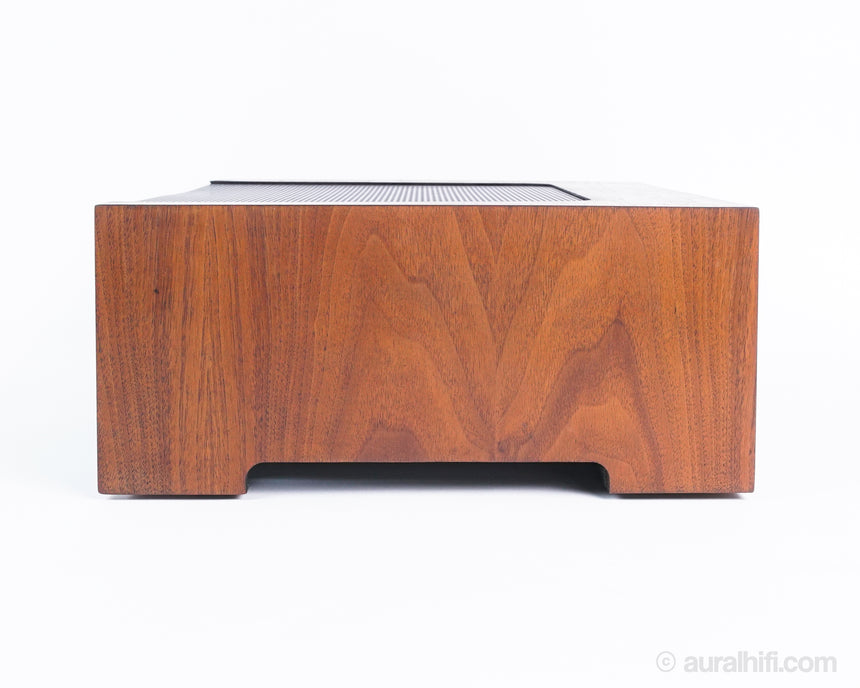

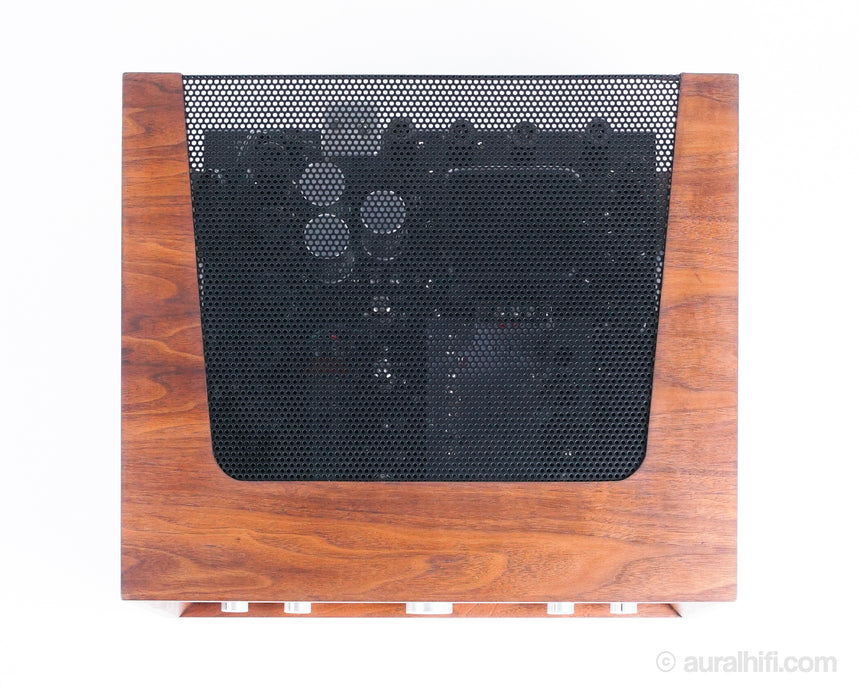

Cabinet restored

Factory Specs

Type Mono/Stereo Tuner

Inputs 1 x 300-ohm

Tuning Bands FM

Tuning Scale Analogue

FM Tuning Range 88 to 108 MHz

IF stages 6

Sensitivity 2.0uV

Capture 2.0 dB

Distortion 0.2%

Selectivity 42dB

Signal to Noise Ratio 70 dB

Tube Complement EC88/6DL4 (2), 6DZ4, 6JK6 (9), 12AX7 (5), 6U8, 12AU7 (3), DG7/32/01 (Oscilloscope)

Dimensions 15-3/8 x 5-3/4 x 15 inches

Weight 38lbs

Designer

Dick Sequerra

Documentation

Marantz 10B Provisional Instructions (1964)

Marantz 10B Owner's Manual

Marantz 10B Schematic

The History of Marantz

More than any other person, Saul Marantz defined premium home entertainment. Driven by his passion for music and his accomplishments as a classical guitarist – accomplishments that led to a close friendship with Andres Segovia – he was never satisfied with the “hi fi” equipment of his day. So he built better; first in...
[ Read More ]

Liner Notes

Without doubt, the model 10B is the most advanced instrument of it's kind today. Marantz engineers have bypassed the inherent limitations of conventional circuits through the employment of bold new concepts and highly sophisticated electronic techniques. The performance of every circuit stage shows the dramatic order of improvement which can be achieved through creative inventiveness.
