Vintage Allison Model Six // Speakers

The Allison Six is a brilliant design, with a shocking level of low end from such a little cabinet. In stark contrast to most speakers who call themselves "bookshelf" models, the Allison Six looks you dead in the eye when they say it. Specifically intended for use with its back to the wall, on a shelf, table, or bookcase – even mounted on the wall. Their versatility is second only to their aesthetics – these little lookers would be right at home in nearly any design-forward listening room.

* Stands sold separately.

Production

1981

Condition

9/10

Serial No.

F1072-F1083

Orig. MSRP

$250

Restoration

• Full 30-point service check
• Restored & Veneered by Brian Salazar @ Holt Hill Audio
• Cleaned terminals, grilles, and cabinet

Factory Specs

Type   Two-way, bookshelf speaker

Tweeter   one 1-inch (25 mm ) Convex Diaphragm

Woofer   one 8-inch (203 mm)

Crossover Frequency   2 kHz

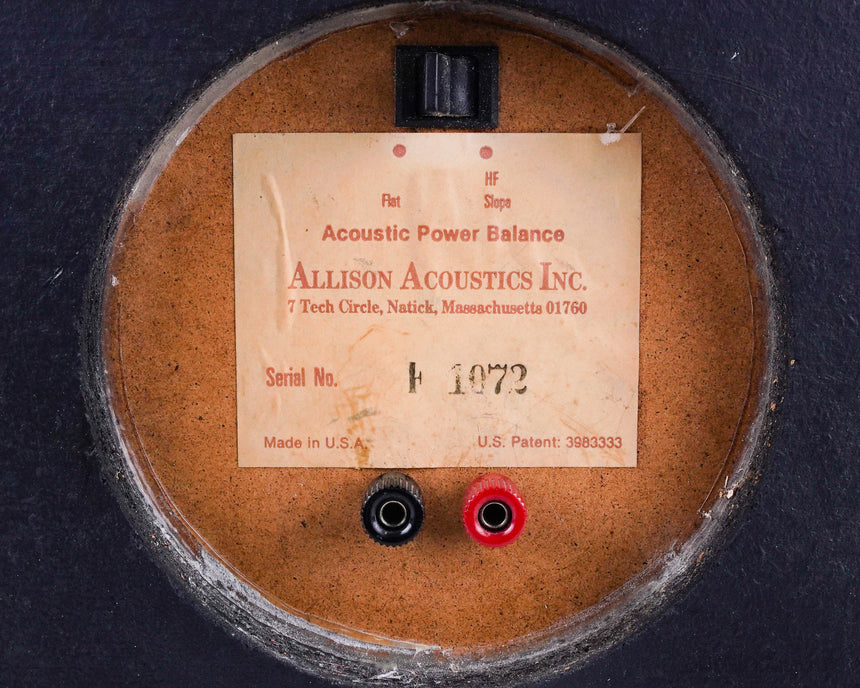

Crossover Network   LC quarter-section. Air-core choke and polyester capacitor are used. Two-position control switch (accessible from front) supplied for selection of system acoustic power response, from nominally flat to gentle HF rolloff.

Impedance   4 Ω nominal, (3,5 Ω minimum in any balance control setting)

Efficiency   better than 0,7% when placed with back against wall.

Minimum Amplifier Power   15 watts per channel to produce 97 dB sound pressure level in most domestic room environments; 30 watts per channel for 100 dB SPL

Power Handling Capability   At least 15 watts continuous or average, at any frequency. At least 35 watts peak at resonance frequency. Over most of the frequency range, at least 350 watts for 0.1 second; 125 watts for 1 second; or 60 watts for 10 seconds.

System Resonance Frequency   59 Hz, nominal

Effective System Q   1.0. Power response -3 dB at 46,5 Hz; -6 dB at 39 Hz, when placed close to center of large wall. Low-frequency output increases when system is placed in typical positions with respect to side wall and floor or ceiling

Enclosure   stabilized Radiation Loading sealed acoustic suspension design.

Internal Volume   14,1 litres (860 cubic inches)

Material   particle Board veneered with walnut, oiled finish.

Dimensions   11.25"H x 11.25"W x 11.25"D

Weight   17 lbs. ea.

Liner Notes

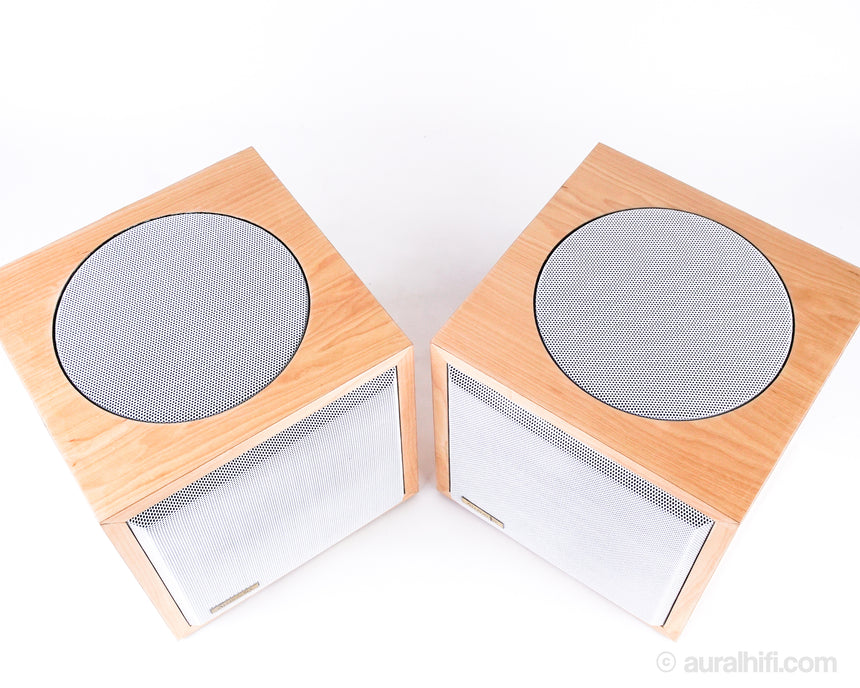

The Allison:Six is the smallest, and lowest priced addition to the Allison Acoustics speaker line. The half-cubic-foot Allison:Six is just large enough to enclose its 8-inch woofer, which faces upward and radiates frequencies up to 2,000 Hz. The dome tweeter, which faces forward, is identical to those used on all other Allison speakers, with a proprietary dome design that gives it exceptional dispersion. Like the other Allison models, the Six is meant to be installed against a wall, in which position the woofer .output is most uniform because there are no cancellations of its output from wall reflections within its frequency range.
