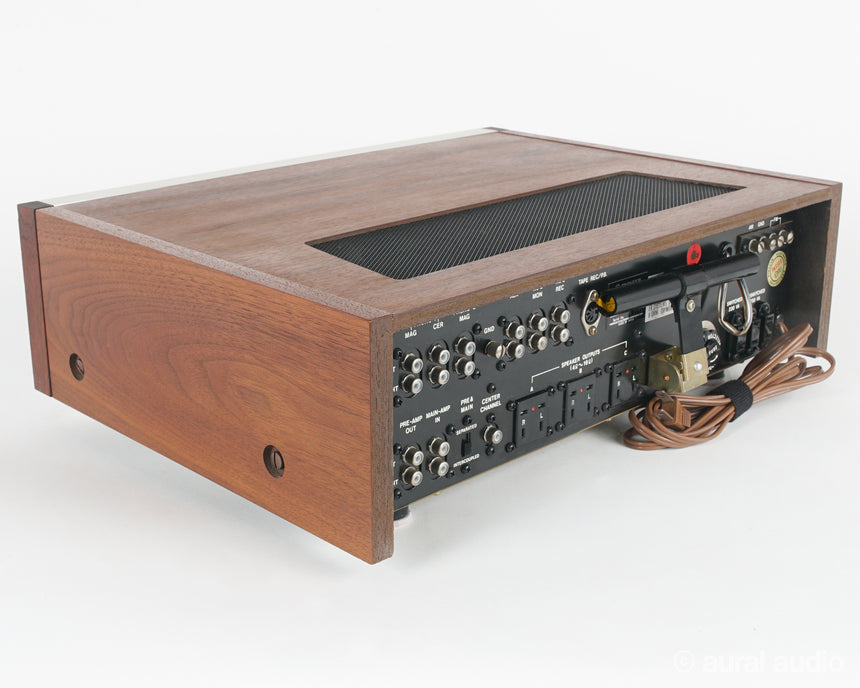

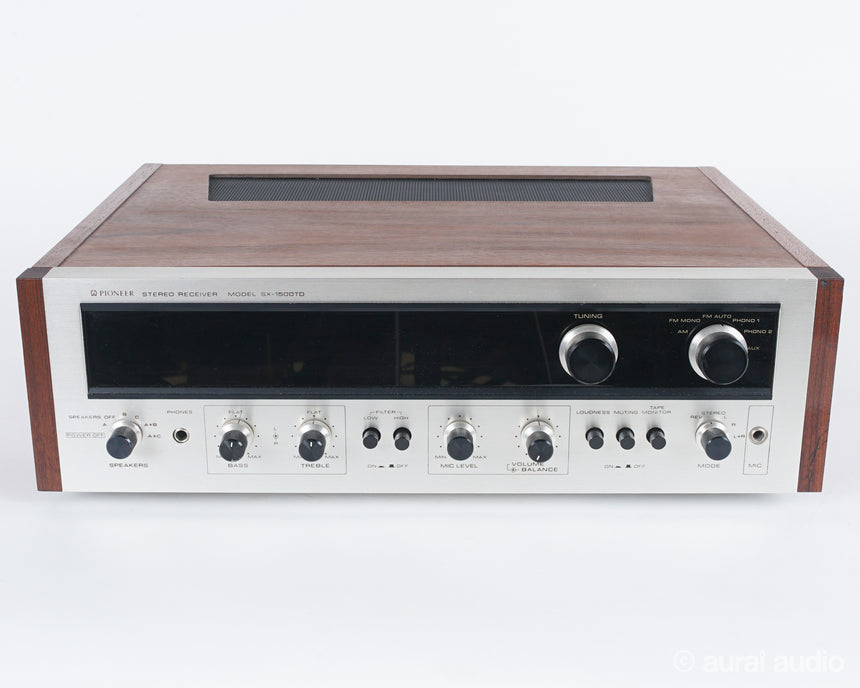

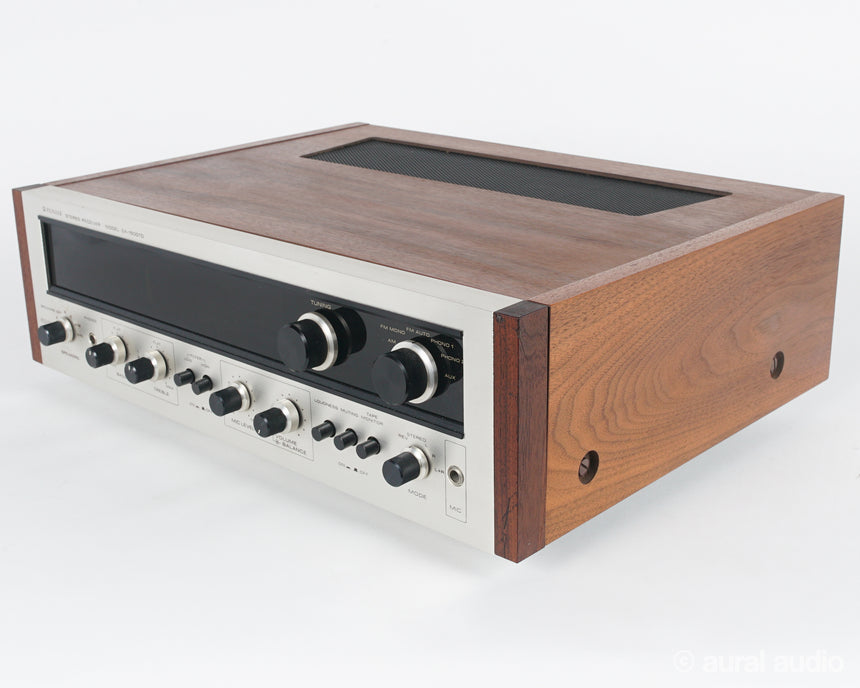

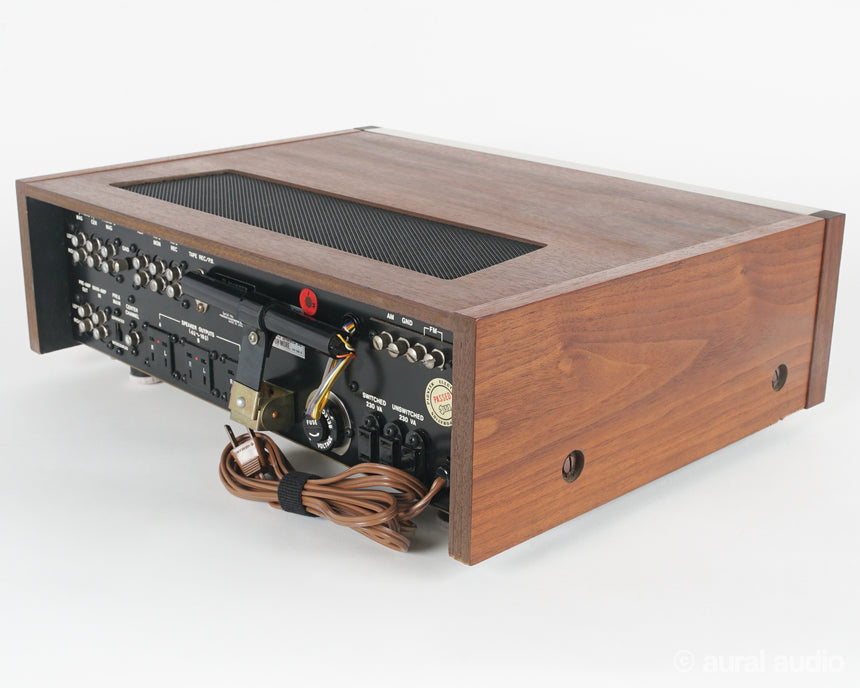

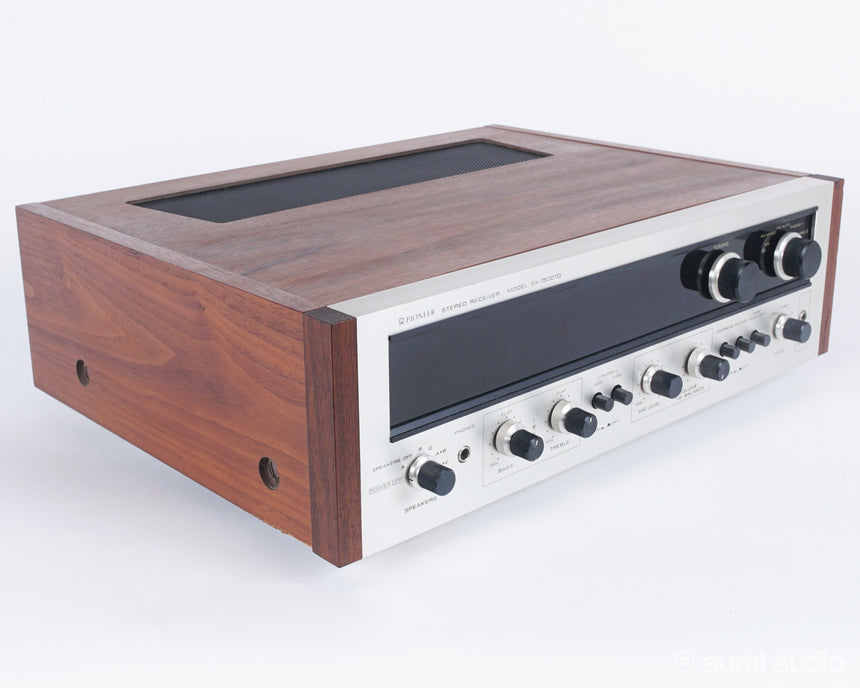

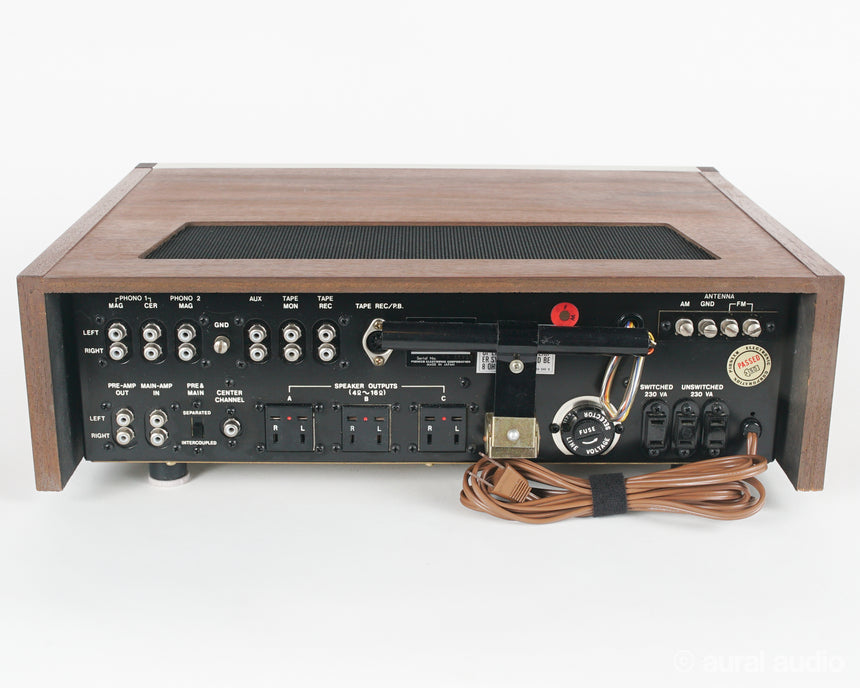

Pioneer SX 1500TD // Stereo Receiver

SOLD , now part of a Private Collection
This 1500TD is a great amp with strong power and sleek looks. You just can't go wrong with a Pioneer SX.
Production
1969-73
Condition
9/10
Orig. MSRP
$400
Restoration
  • Full service check.
  • Cleaned controls, switches, and chassis.

This receiver has 20wpc with .25% distortion in both channels. The FM/MPX separation is 35db.

Factory Specs

Tuning rangeAM, FM

Power output 58 watts per channel into 8Ω (stereo)

Frequency response 10Hz to 100kHz

Total harmonic distortion 0.5%

Damping factor 50

Input sensitivity 3.2mV (mic), 2.7mV (MM), 60mV (ceramic), 200mV (line)

Signal to noise ratio 80dB (MM), 100dB (line)

Speaker load impedance 4Ω to 16Ω

Semiconductors 1 x FET, 5 x IC, 39 x transistors, 20 x diodes

Dimensions 459 x 145 x 369mm

Weight 11.4kg

The History of Pioneer
Pioneer was founded by Nozomu Matsumoto in 1938 in Tokyo as a radio and speaker repair shop. In December 1953 Mr. Nozomu Matsumoto succeeded in developing the first domestic dynamic speaker made of original parts. It was named A-8 and marketed in Japan under the Pioneer brand. It later became the origin of the HiFi ...
[ Read More ]
