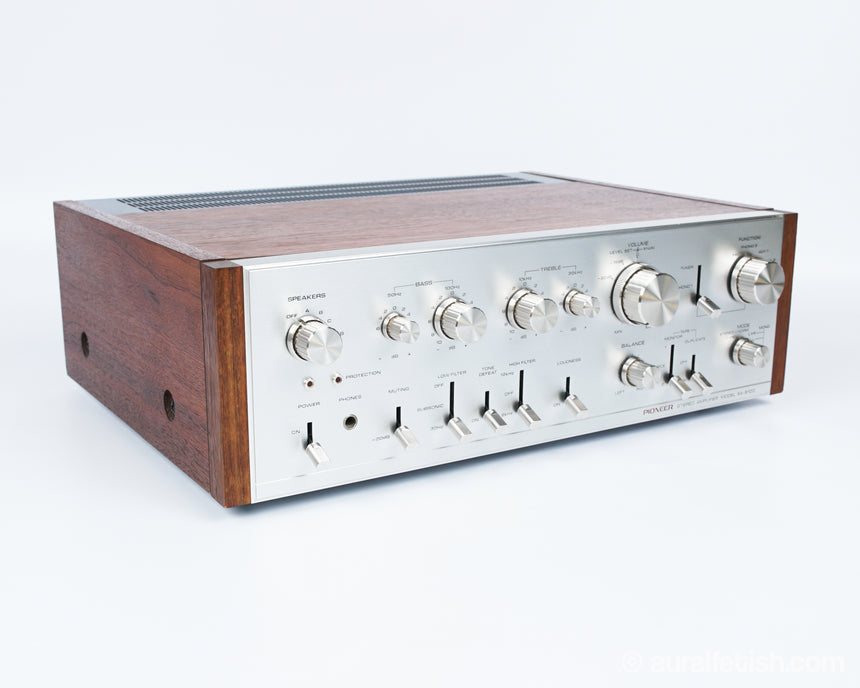

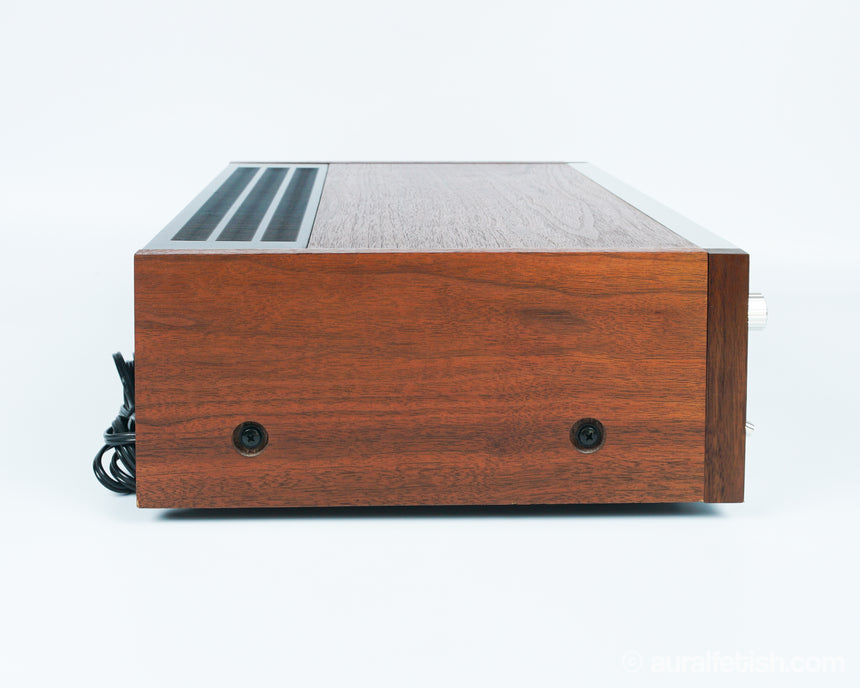

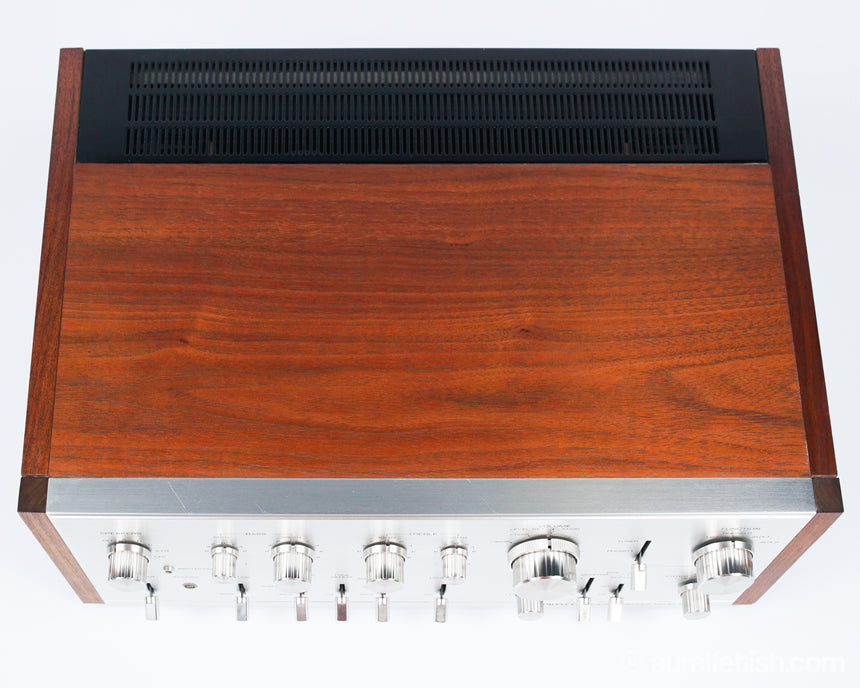

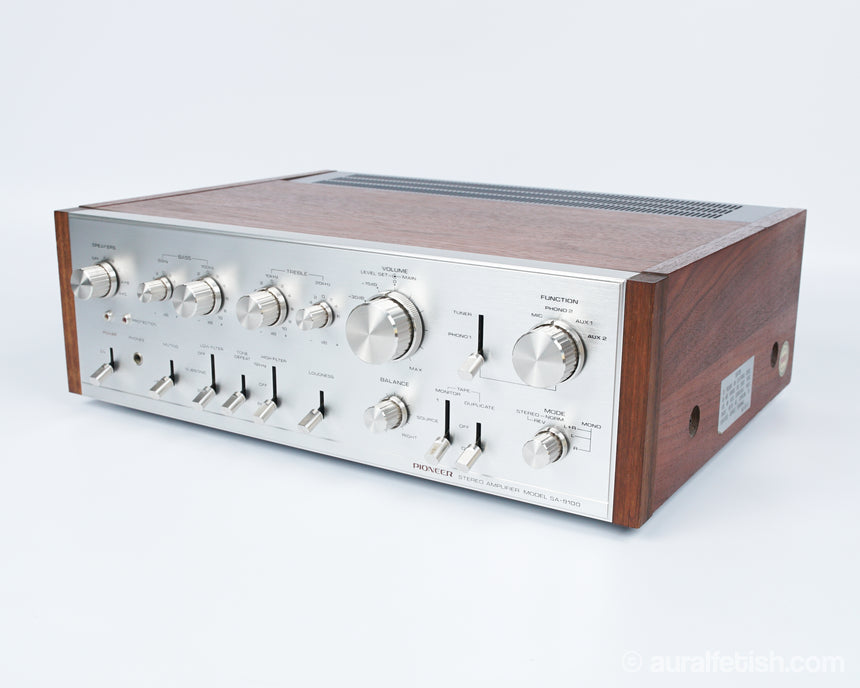

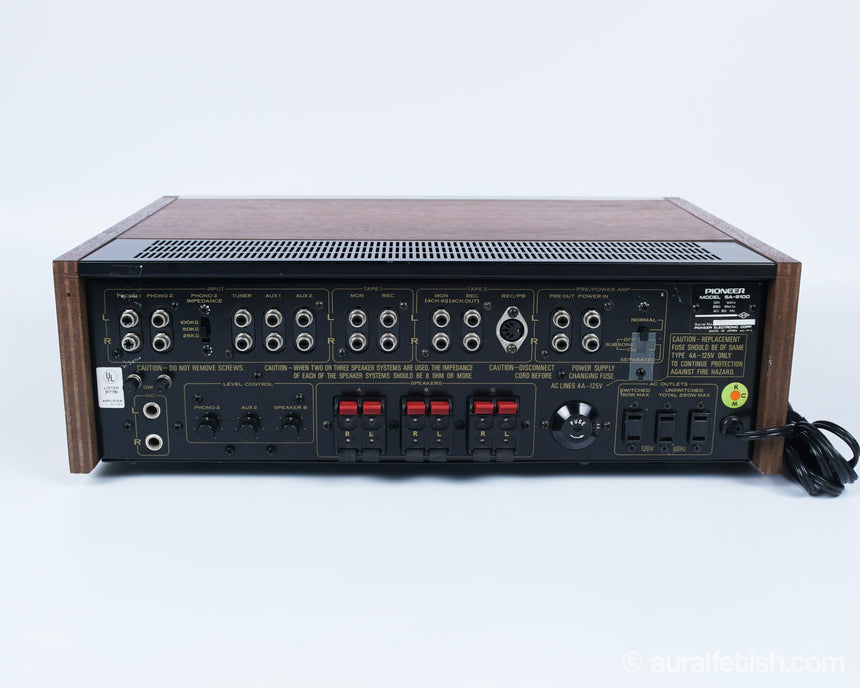

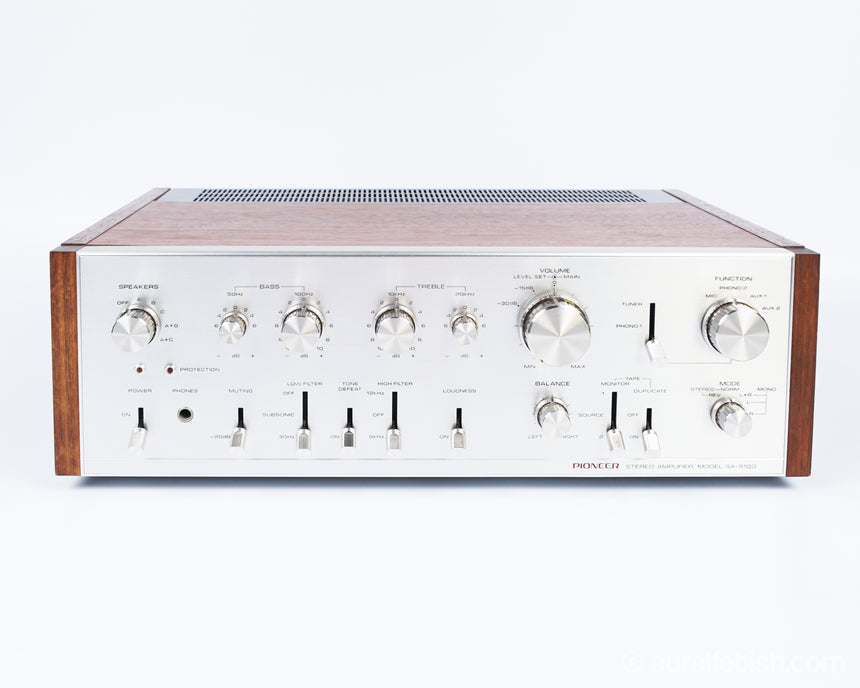

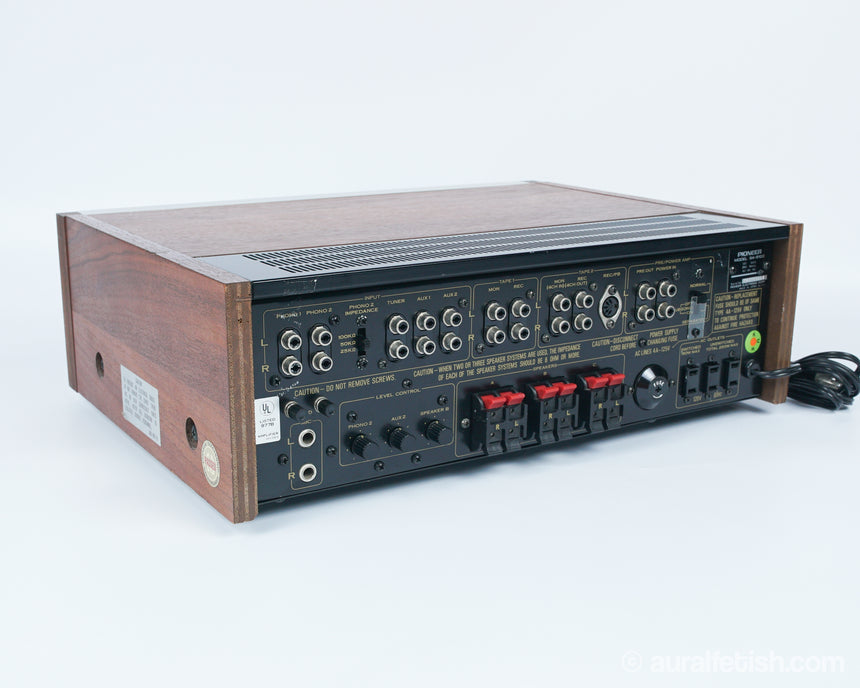

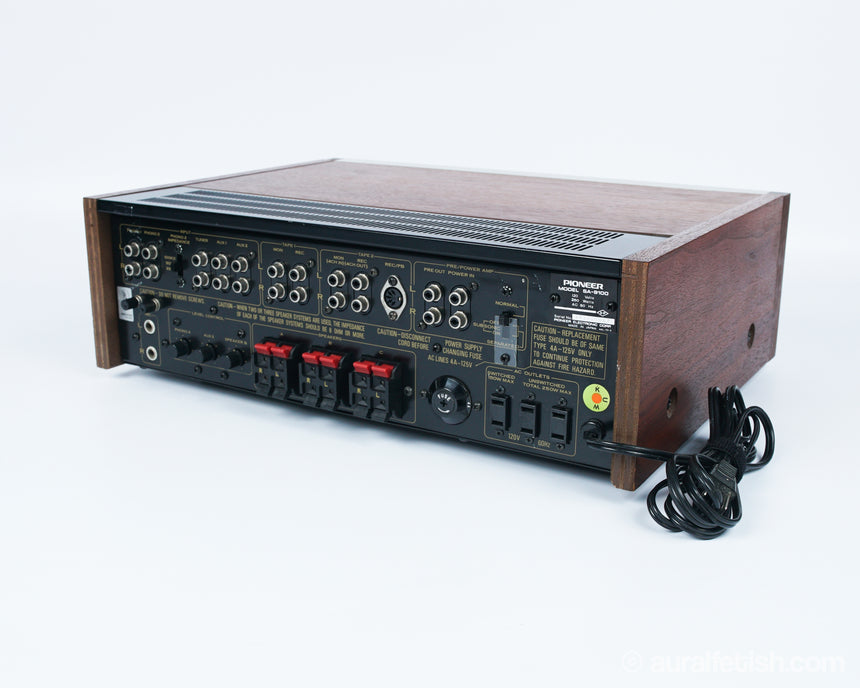

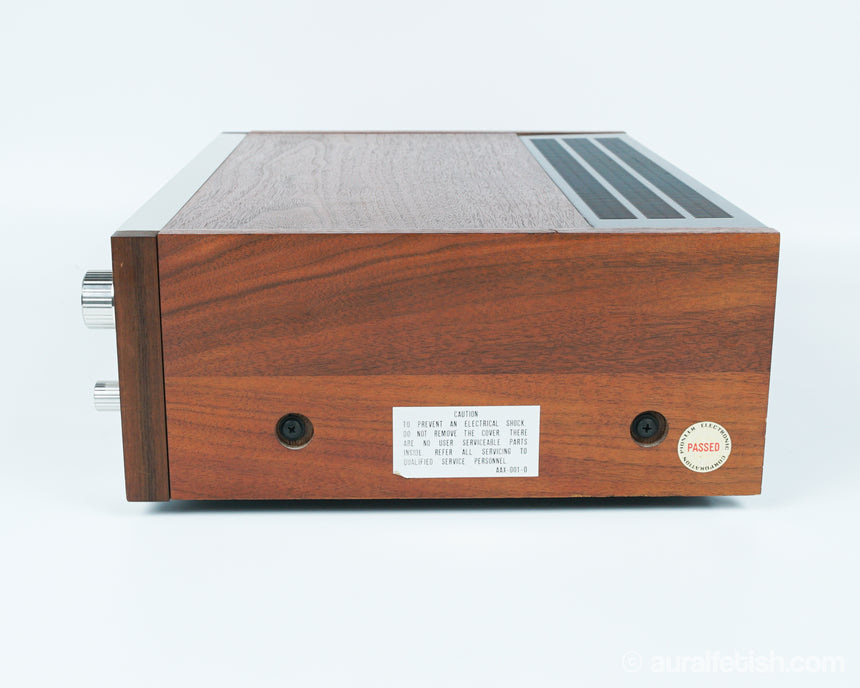

Pioneer SA-9100 // Integrated Amplifier

SOLD , now part of a Private Collection
The style and power of a big Pioneer steel-face without taking up all that extra space on the credenza. This integrated sounds incredible, and looks like it belongs on Bond's bedroom.
Production
1973-75
Condition
9/10
Serial No.
TK3705062
Orig. MSRP
$450
Restoration
  • Full service check
  • Cleaned controls and switches
  • Detailed
Factory Specs

TypeIntegrated Stereo Amplifier

Power output 60 watts per channel into 8Ω (stereo)

Frequency response 10Hz to 70kHz

Total harmonic distortion 0.1%

Damping factor 70

Input sensitivity 2mV (mic), 2.5mV (MM), 150mV (line)

Signal to noise ratio 70dB (mic), 80dB (MM), 90dB (line)

Output 150mV (line), 30mV (DIN), 2V (Pre out)

Speaker load impedance 4Ω to 16Ω

Semiconductors 63 x transistors, 30 x diodes

Dimensions 430 x 138 x 341mm

Weight 30 lbs.

Documentation

Pioneer SA-9100 Owner's Manual

The History of Pioneer
Pioneer was founded by Nozomu Matsumoto in 1938 in Tokyo as a radio and speaker repair shop. In December 1953 Mr. Nozomu Matsumoto succeeded in developing the first domestic dynamic speaker made of original parts. It was named A-8 and marketed in Japan under the Pioneer brand. It later became the origin of the HiFi ...
[ Read More ]
Stock No.
7329927102685
