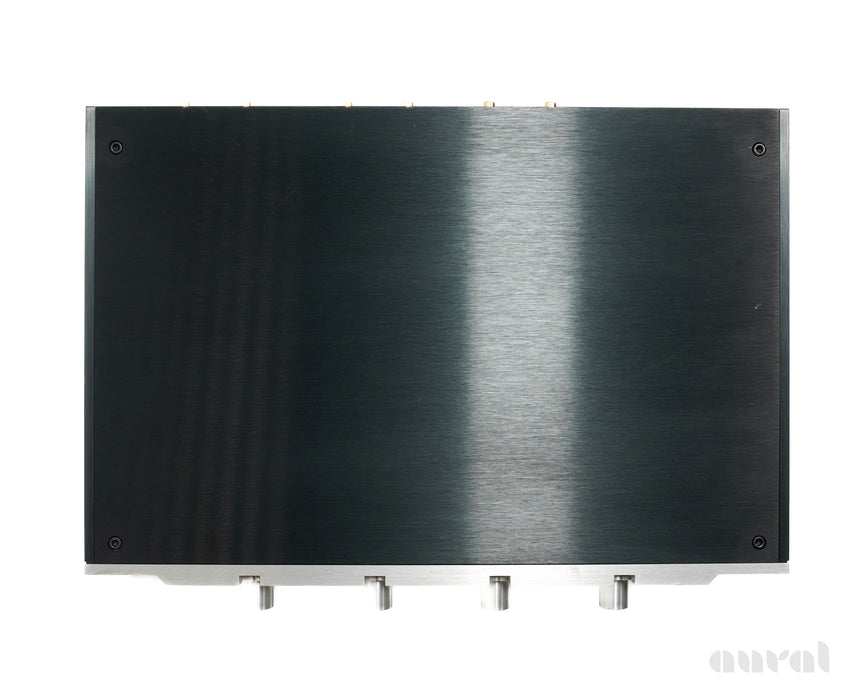

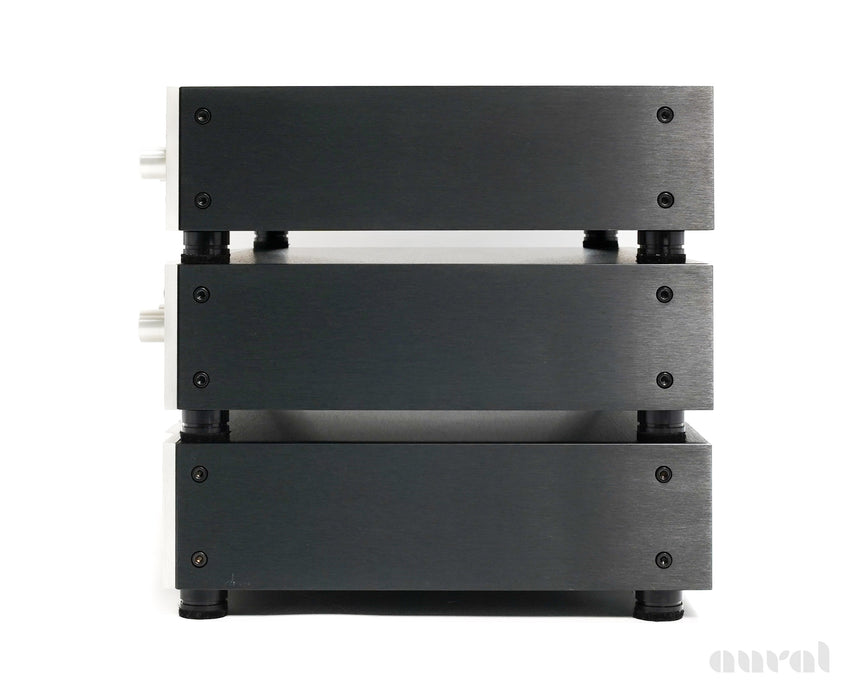

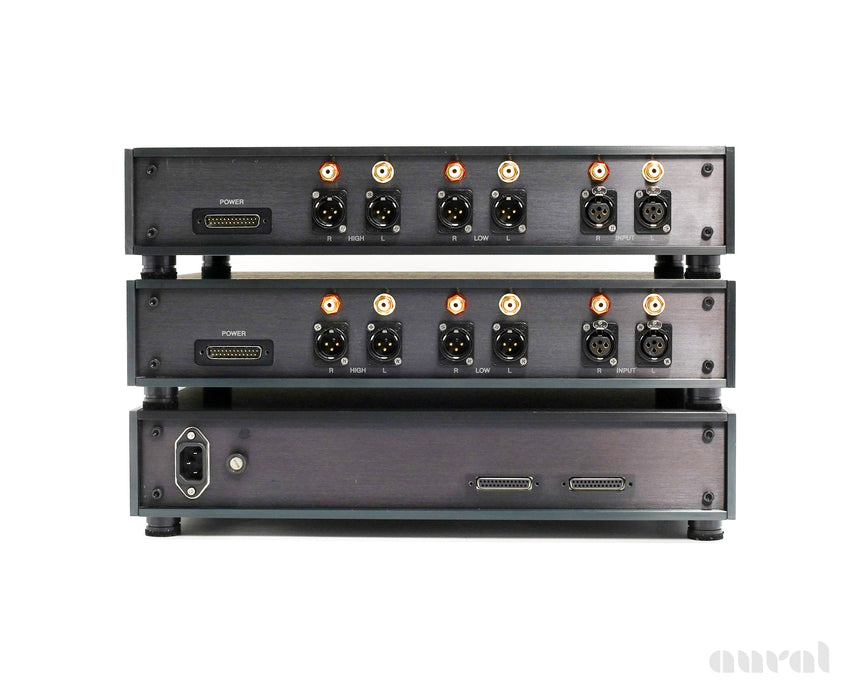

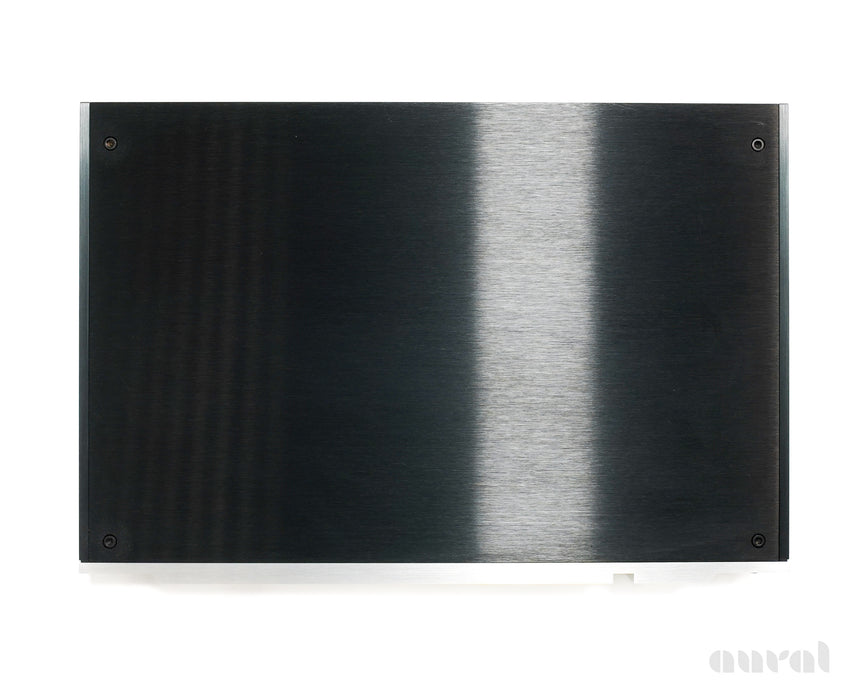

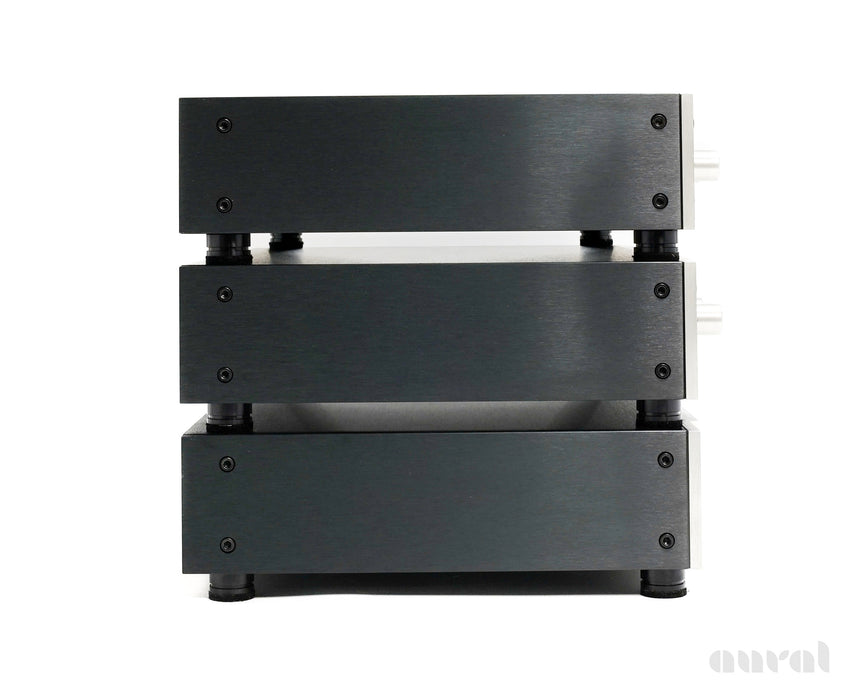

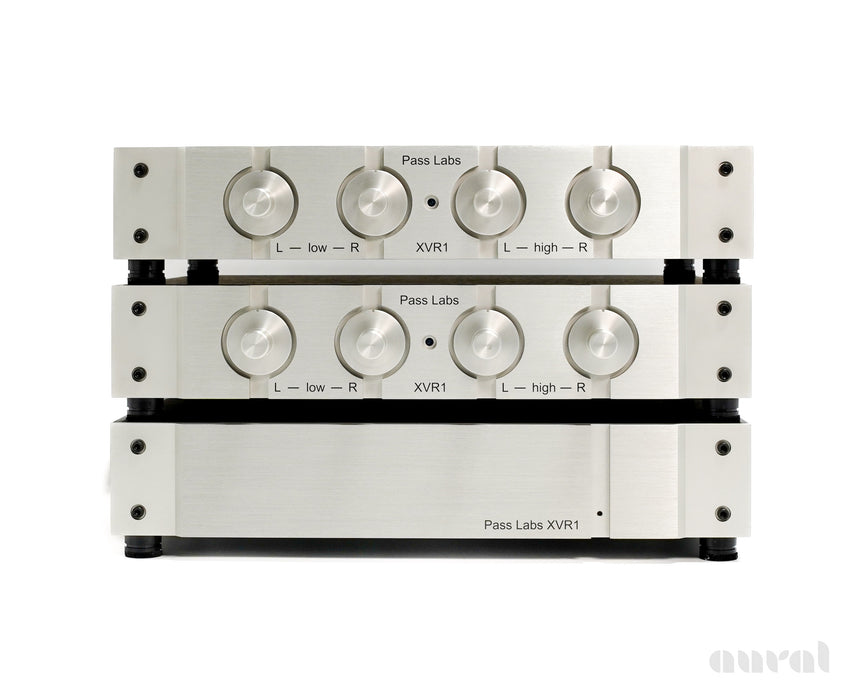

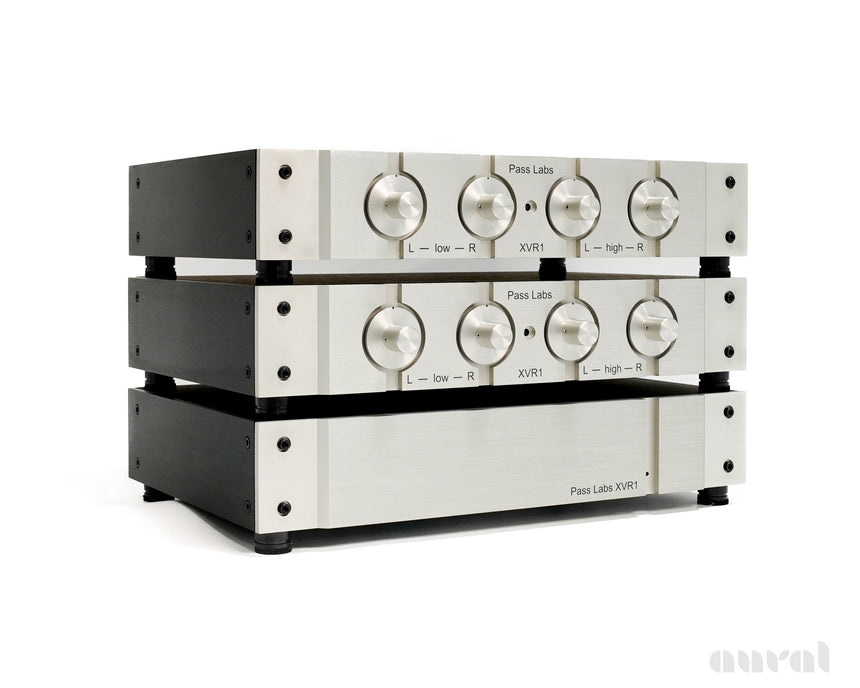

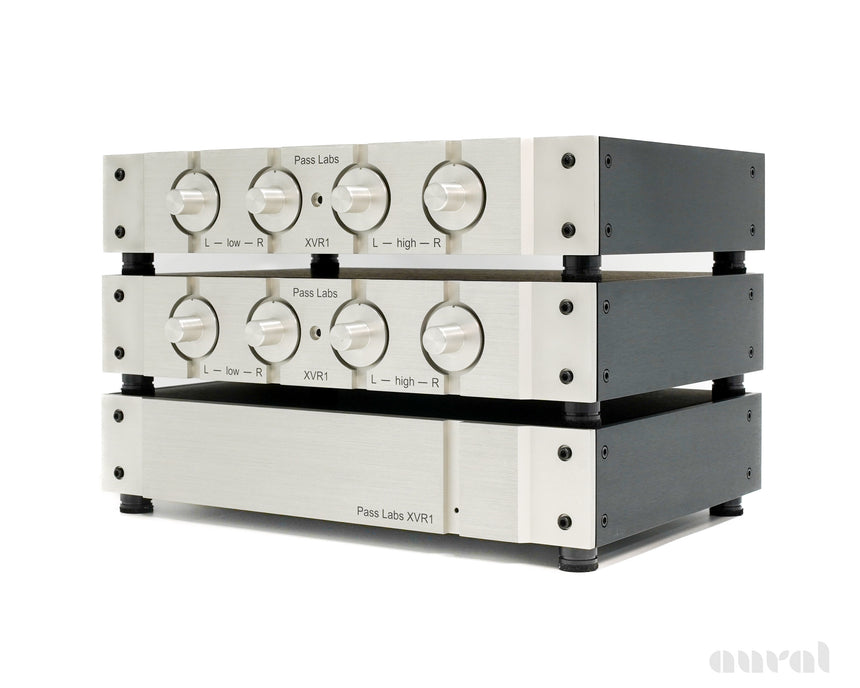

Pass Labs XVR1 // Preowned Active Crossover / 3 Way / 15041-3

The Pass Labs XVR1 isn’t just a crossover—it’s the crossover for audiophiles who believe in absolute control over their speaker system. Designed by Nelson Pass, a name that’s synonymous with high-end audio innovation, the XVR1 offers a level of tweaking, tuning, and precision that would make even the most obsessive audiophile blush. If you’ve ever sat there wondering how to squeeze every last ounce of performance out of your speakers, the XVR1 is the tool that makes your wildest sonic dreams possible.

*Ships in the original Factory Box

Production

2003

Condition

9/10

Serial No.

15041/42/43

Restoration

• Set jumpers to 2nd order Hi/Lo pass at 1060Hz
• Verified pots and jumpers

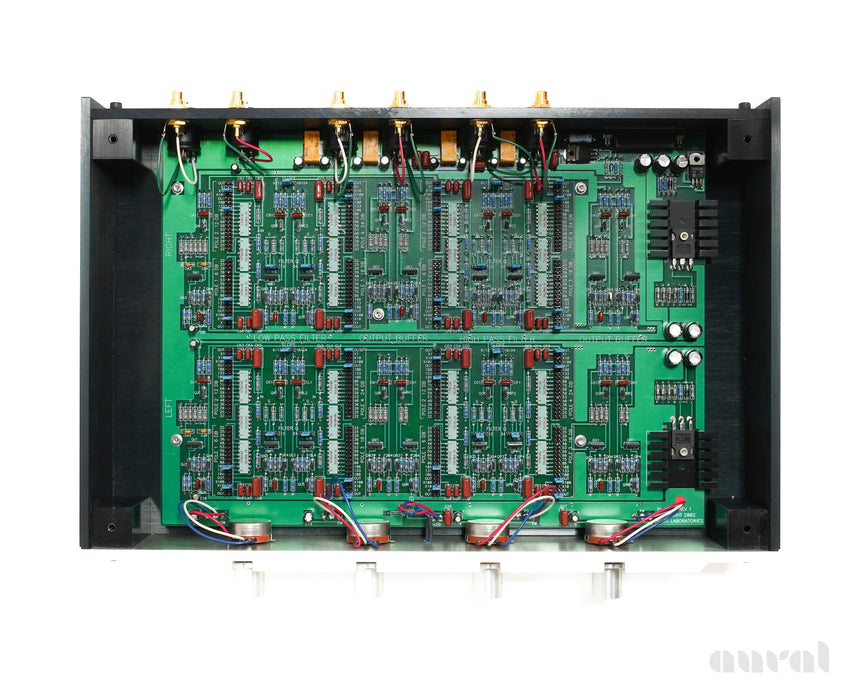

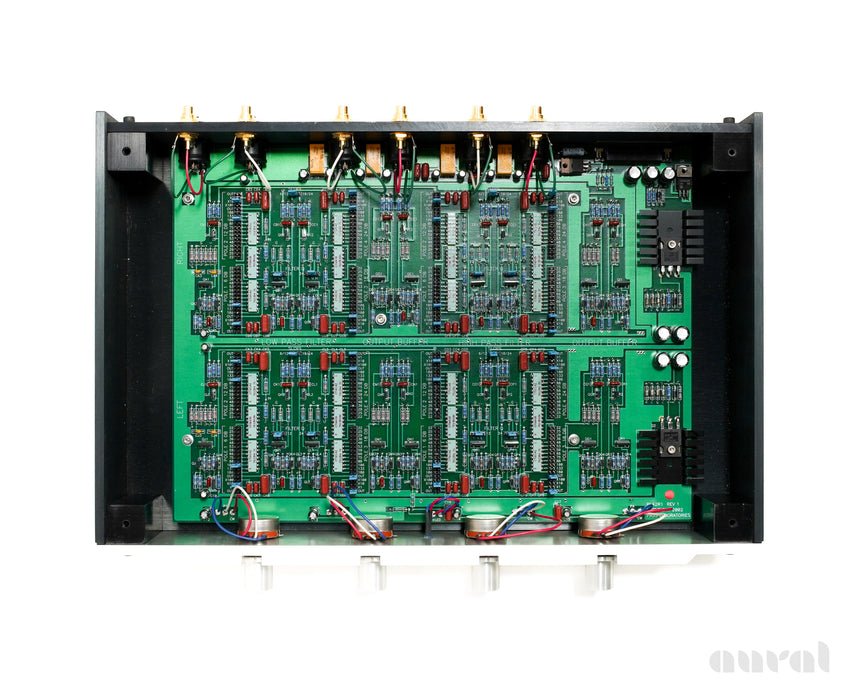

• Cleaned boards and connectors

Factory Specs

Input Impedance, Bal. (Kohm)  =  66

Maximum Input, Bal. (Vrms)  =  30

Maximum Output, Bal. (Vrms)  =  30

Input Impedance, SE (Kohm)  =  44

Maximum Input, SE (Vrms)  =  15

Maximum Output, SE (Vrms)  =  15

Input CMRR  =  -60 dB @ 20 KHz

Crosstalk  =  -80 dB @ 20 KHz

Output Impedance  =  200 ohm balanced differential, 100 ohm single-ended

Gain, Input to Output (Low Q)  –  XLR = 5.6 dB, RCA out = -0.4 dB

Gain, Input to Output (Med Q, 6/12 dB/oct)  –  XLR = 8.6 dB, RCA out = 2.6 dB

Gain, Input to Output (Med Q, 18/24 dB/oct)  –  XLR = 13.4 dB, RCA out = 7.4 dB

Gain, Input to Output (Hi Q, 6/12 dB/oct)  –  XLR = 11.6 dB, RCA out = 5.6 dB

Gain, Input to Output (Hi Q, 18/24 dB/oct)  –  XLR = 17.6 dB, RCA out = 11.6 dB

All Pass Bandwidth (Low Pass)  =  -0 @ 10 Hz, -0 @ 100,000 Hz

All Pass Bandwidth (High Pass)  =  -1 @ 10 Hz, -0 @ 100,000 Hz

Distortion + Noise (0.2 V to 30 V balanced, 20 Hz to 20 KHz)  =  0.05%

Distortion + Noise (3 V balanced, 1 KHz)  =  0.002%

Filter characteristic (High Pass)  =  6/12/18/24 dB/oct, 22 Hz to 18 KHz in 39 steps

Filter characteristic (Low Pass)  =  6/12/18/24 dB/oct, 22 Hz to 18 KHz in 39 steps
