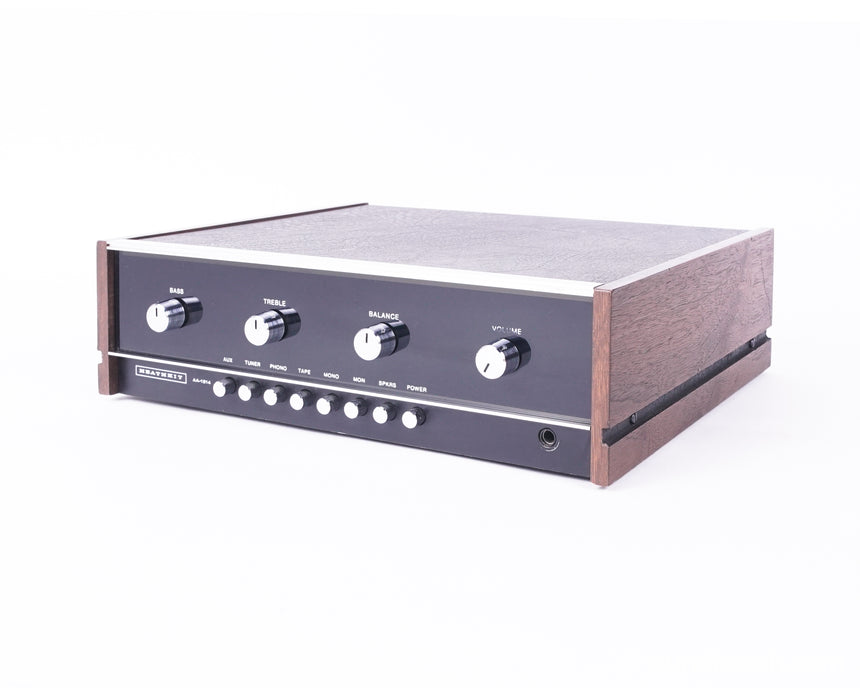

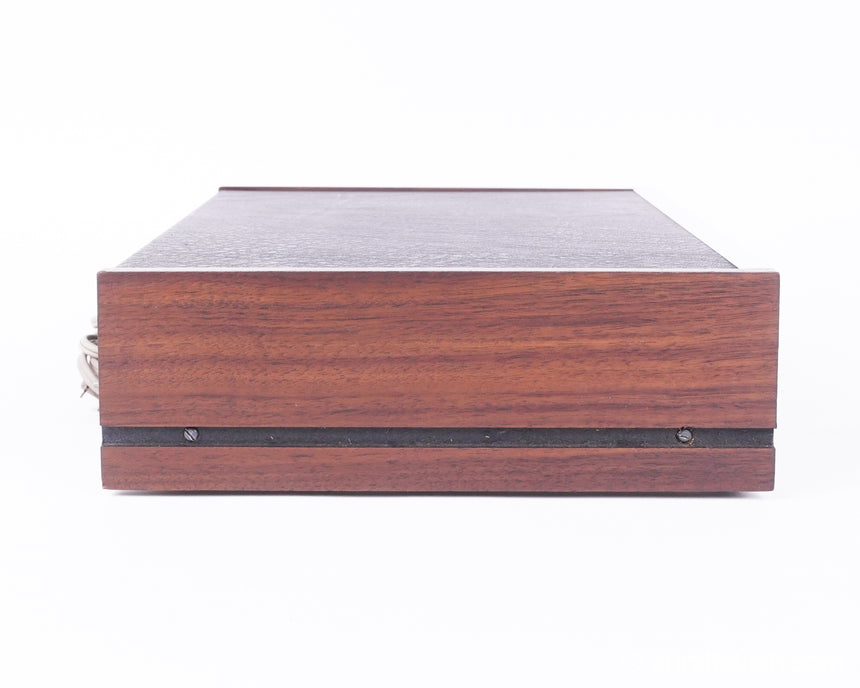

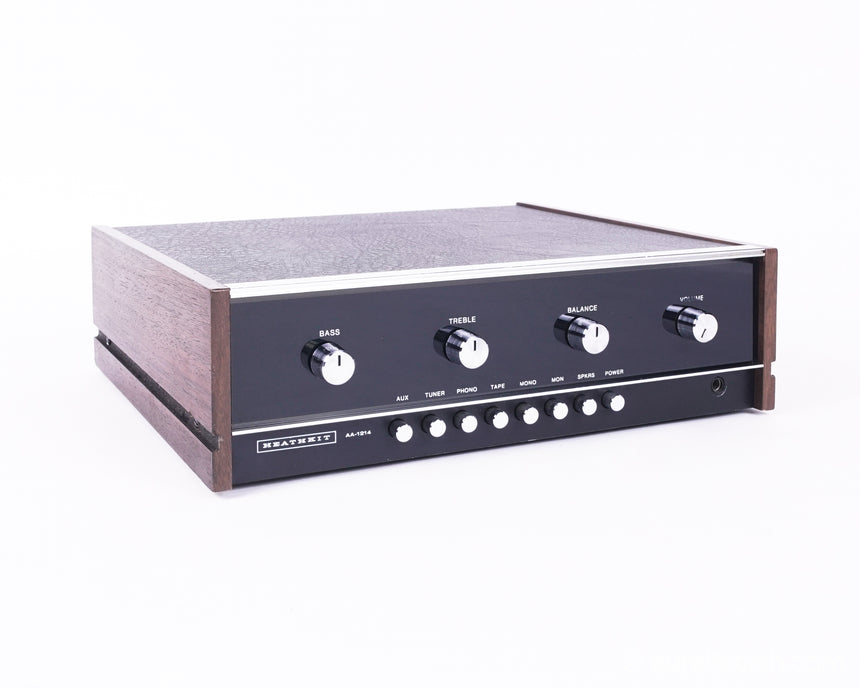

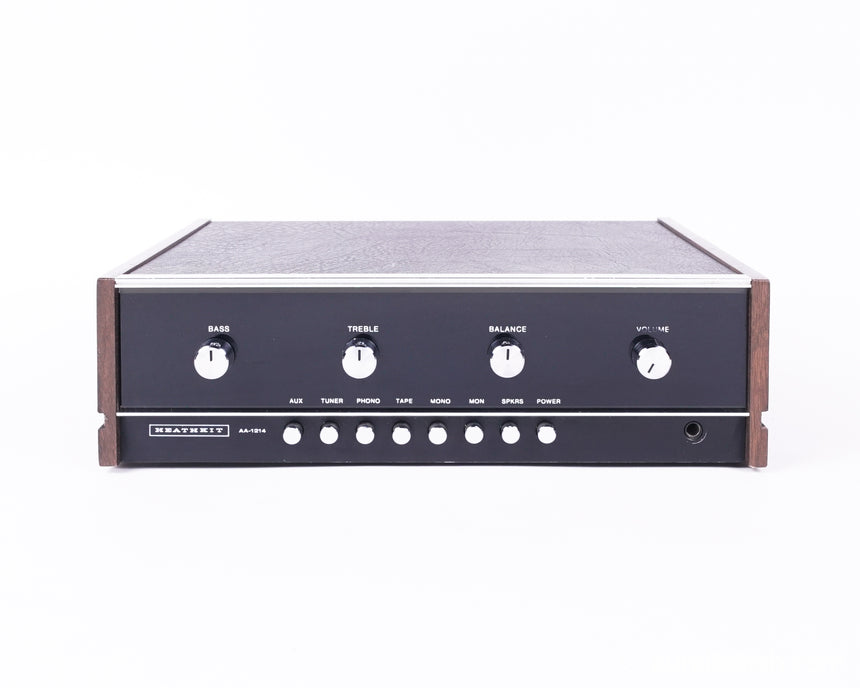

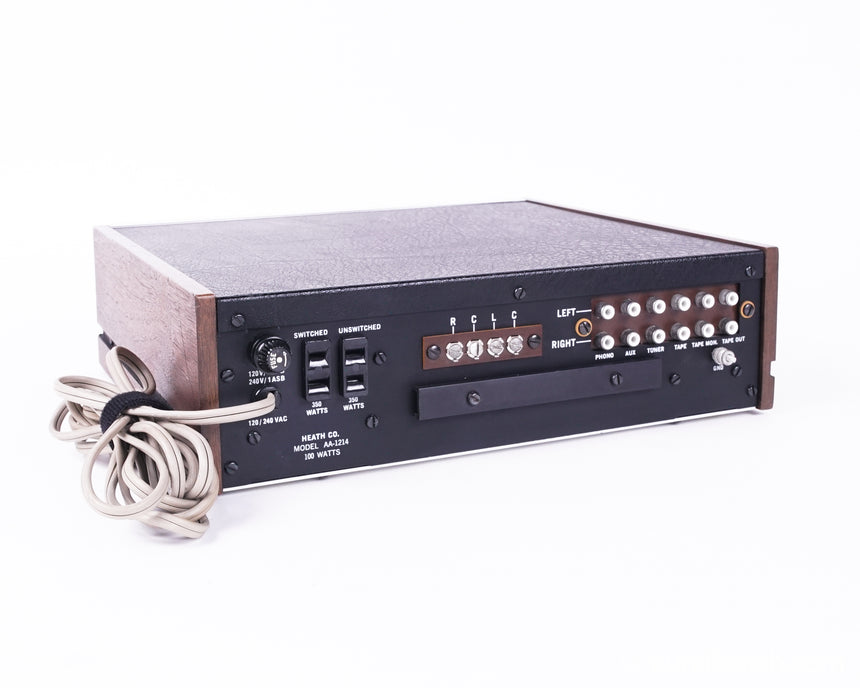

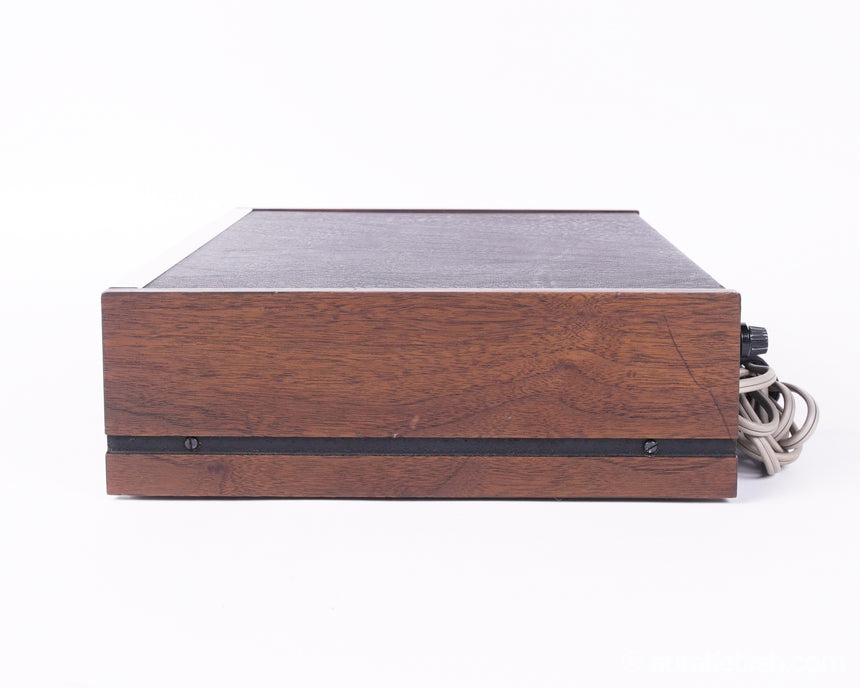

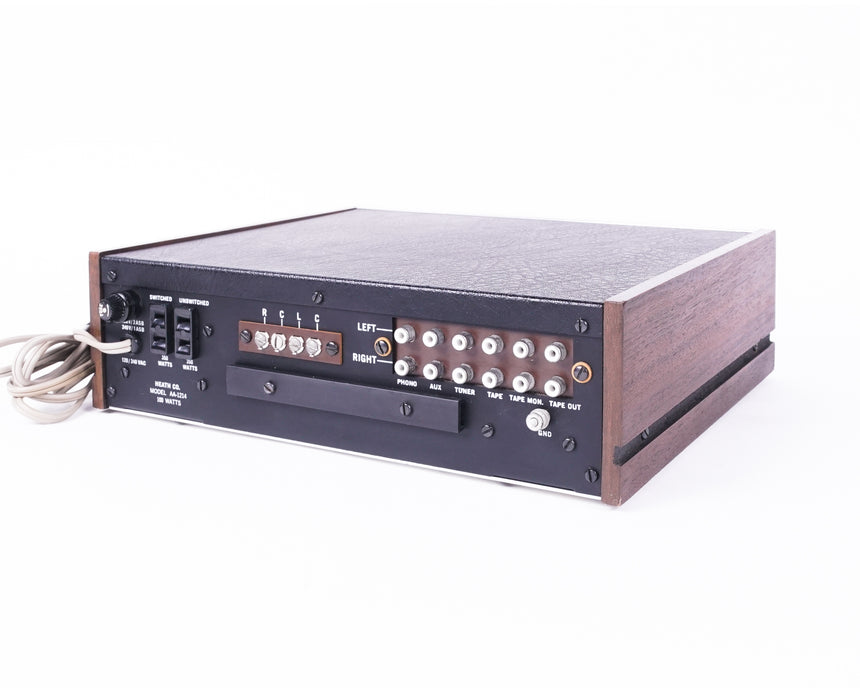

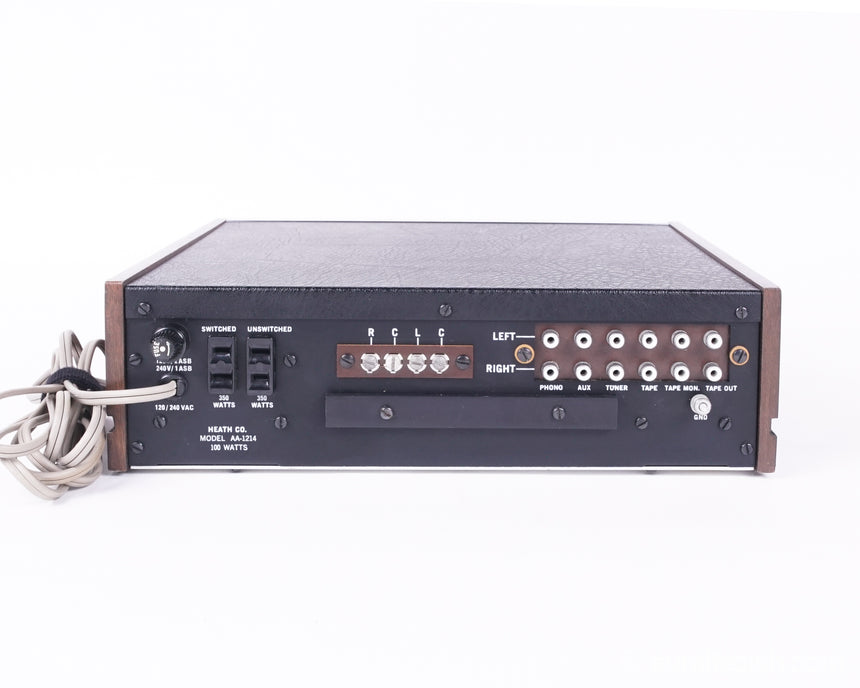

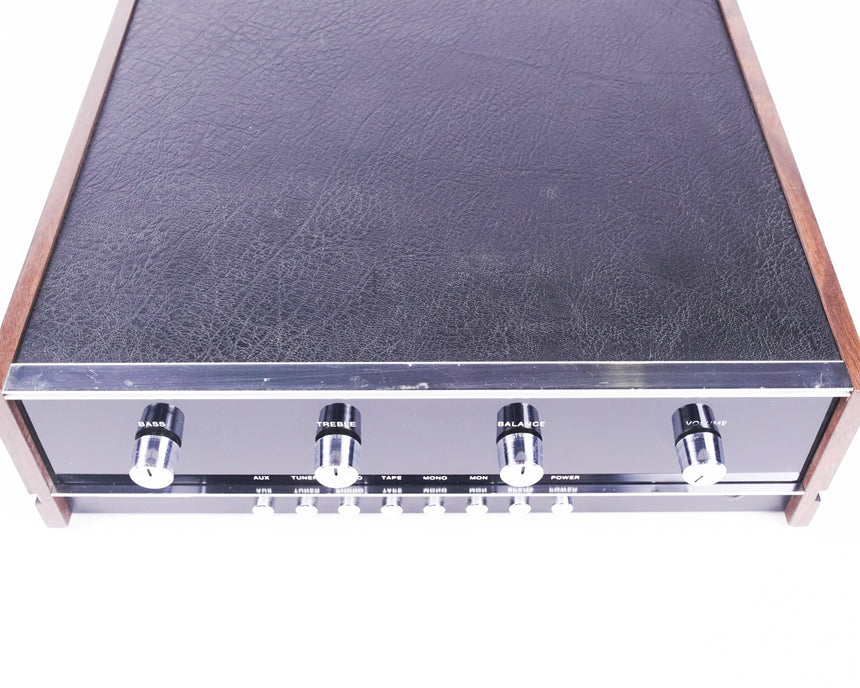

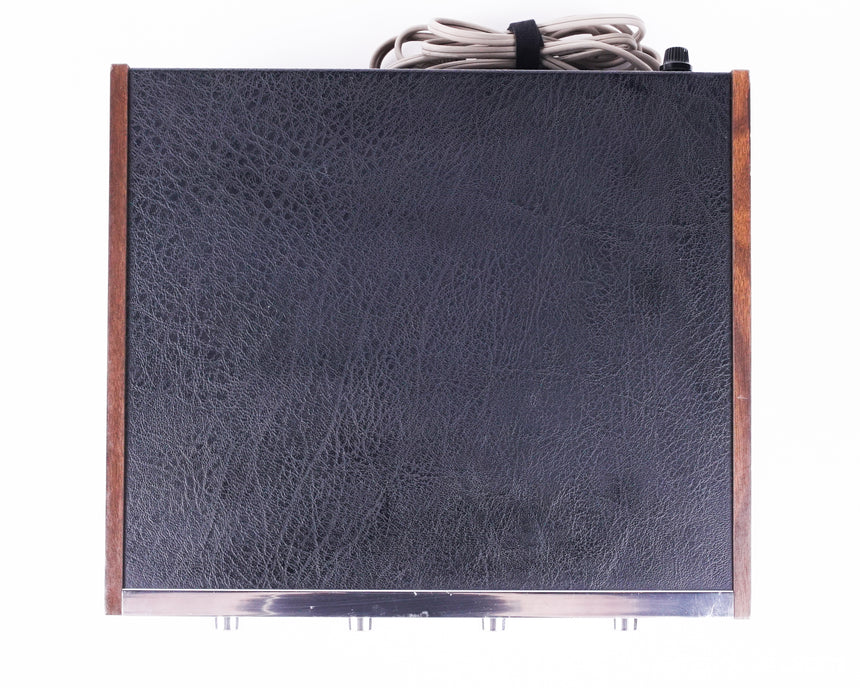

Heathkit AA-1214 // Integrated Amplifier

SOLD , now part of a Private Collection

Create the perfect minimalist system with this integrated amplifier, a pair of efficient speakers, and a turntable, or a Sonos Connect. Love this little amp.!

Production
1973-76
Condition
9/10
Orig. MSRP
$89.95
Restoration
  • Full 30 point service check
  • Cleaned controls, switches, and chassis
Factory Specs

Power Output (16/8/4Ω)  10/15/20W

Output Power (Dynamic Music, IHF, 16/8/4Ω)  14/25/30W

Power Response (IHF, 0.5% THD)  5Hz-30kHz

Frequency Response  7Hz-100kHz ±1dB, 5Hz-150kHz ±3dB (1W)

THD (20Hz-20kHz)  0.5%

THD (1kHz)  0.25%

IMD (60Hz:6kHz, 4:1, 1W)  0.2%

IMD (60Hz:6kHz, 4:1, 50W)  0.5%

Damping Factor  50

Input Sensitivity (Phono)  2mV

Input Overload (Phono)  75mV

Input Sensitivity (Aux)  190mV

Input Overload (Aux)  2.5V

Output Voltage (Tape)  0.4V

SNR (Phono)  65dB

Channel Separation (Phono)  55dB

Channel Separation (Aux)  55dB

Power Source  120/240VAC, 50/60Hz 100W

Dimensions  3.8″ × 17″ × 13″

Weight  13 lbs.

Documentation

Heathkit AA-1214 Schematic

The History of Heathkit
The Heath Company was founded as an aircraft company in 1911 by Edward Bayard Heath with the purchase of Bates Aeroplane Co, soon renamed to the E.B. Heath Aerial Vehicle Co. Starting in 1926 it sold a light aircraft, the Heath Parasol, in kit form. Heath died during a 1931 test flight. The company reorganized and move...
[ Read More ]
