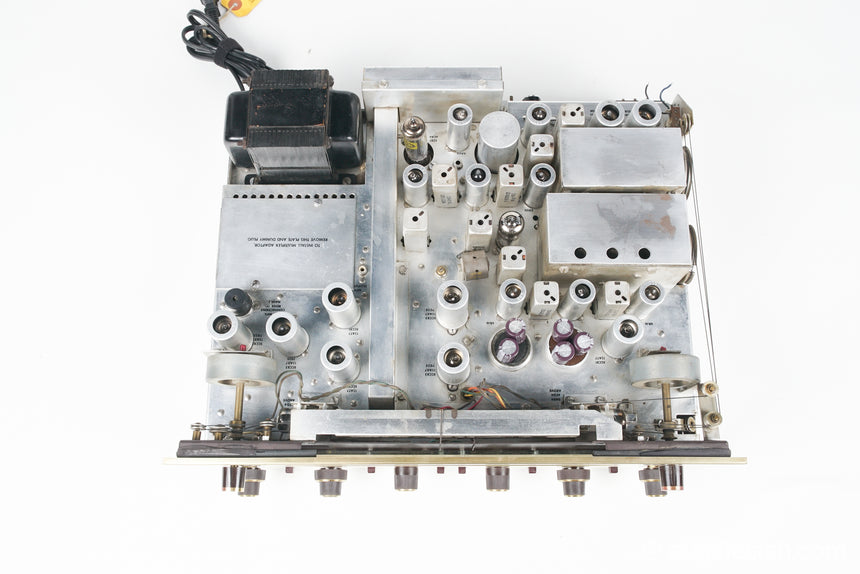

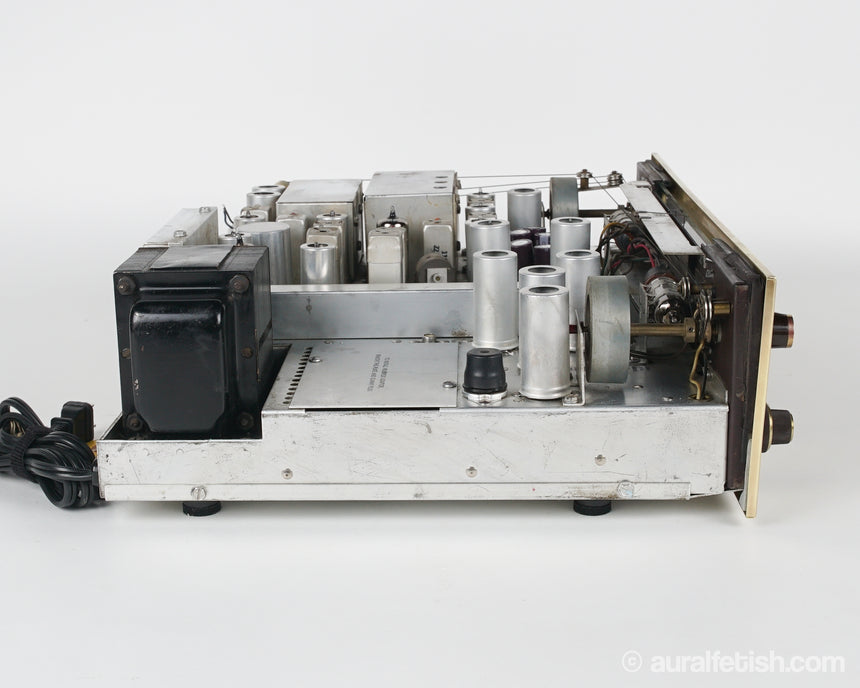

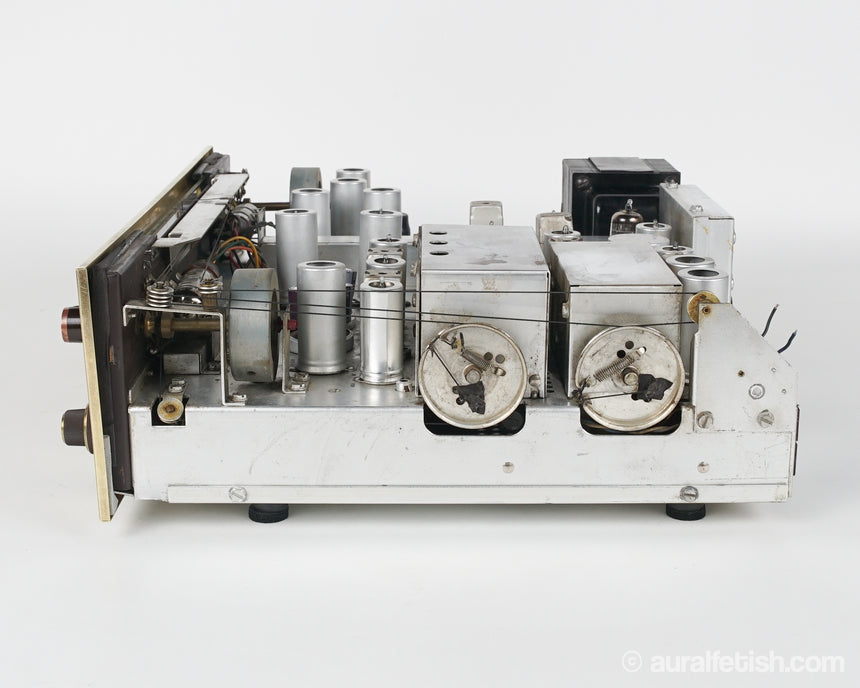

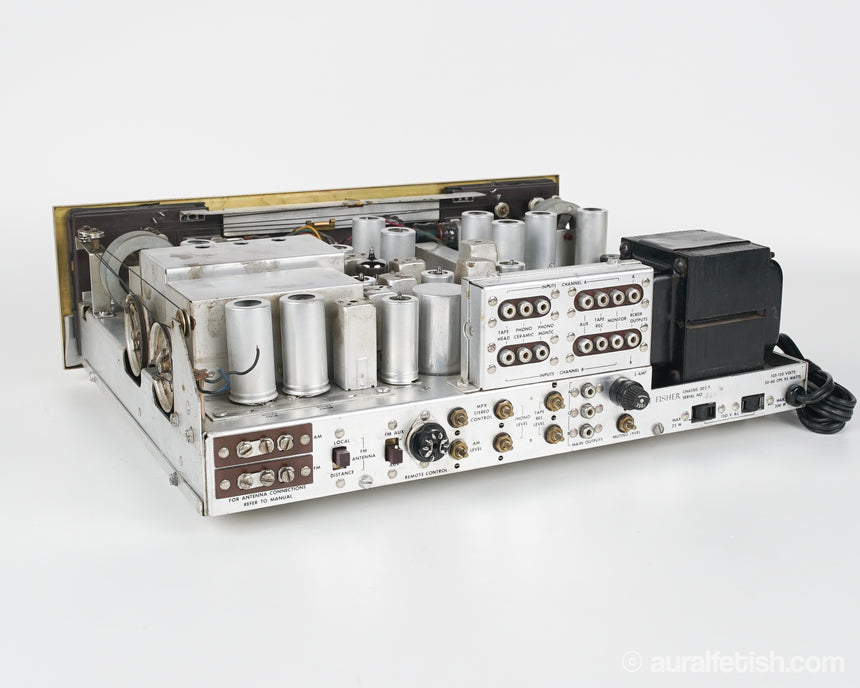

Fisher 202-T Statesman // Tube Preamplifier Tuner

SOLD , now part of a Private Collection

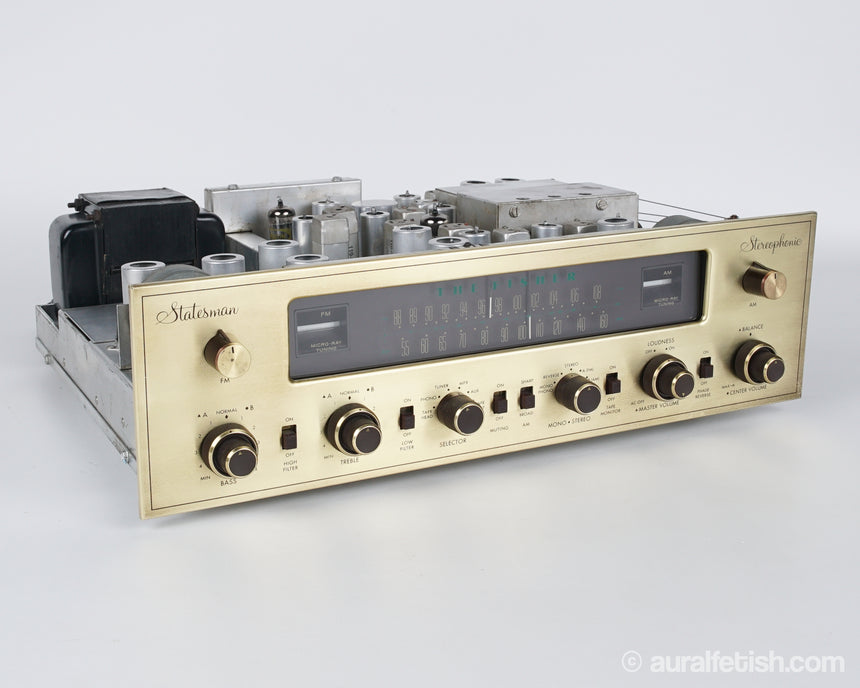

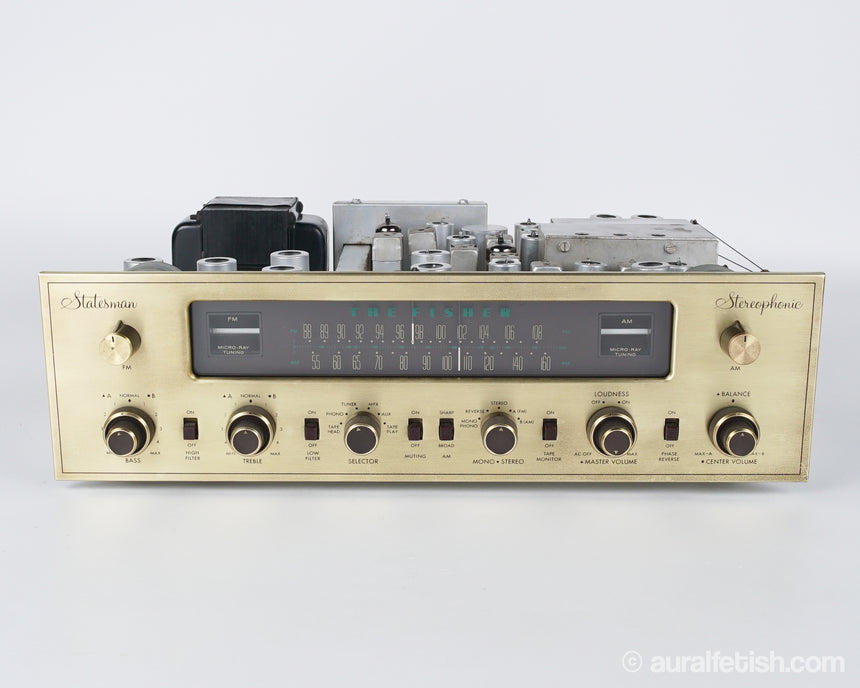

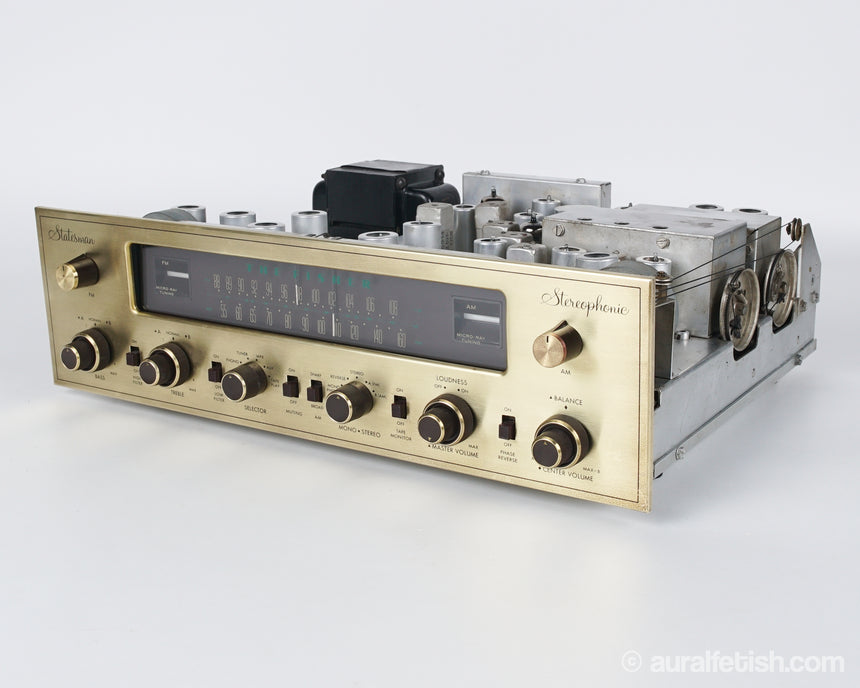

With it's solid brass face, this Fisher 202-T Preamp/Tuner is absolutely out of this world. It was available in the Statesman console, or as a standalone piece. The preamp section is basically identical to that of the much lauded Fisher 400C preamp. This is a VERY, VERY nice preamp.Note: The FM tuning eye is not functional.
Production
1960
Condition
9/10
Serial No.
31432D
Restoration
  • Full service check
  • Cleaned controls and switches
  • Repaired AC sockets
  • Repaired AM
  • Polished brass face
  • Detailed
Factory Specs

Frequency response 20 to 20,000 CPS plus or -1/2 DV

Sensitivity and distortion 2.7mv input for 2v output, with only 0.2% distortion (Magentic); 40mv input for 2v output, with only 0.2% distortion (Ceramic)

channel separation better than 45 dB

balance control range +7dB to more than -60 dB

max input capability Aux 3v, phono 200mv, tape head 150mv

low frequency filter 20 dB rejection at 20 CPS (less than 3 dB at 50 CPS)

high frequency filter 12 dB rejection at 10Kc less than 3DB at 5Kc

Tube Complement 4x 12AX7, 3x 12AT7, 2x 6BJ6, 1x 6BE6, 4x 6AU6, 2x 6FG6, 1x EBF89, 1x ECC88, 1x ECC85, 1x 6CA4, 2x IN541, 2x IN295 (Twenty tubes, plus 4 germanium diodes)

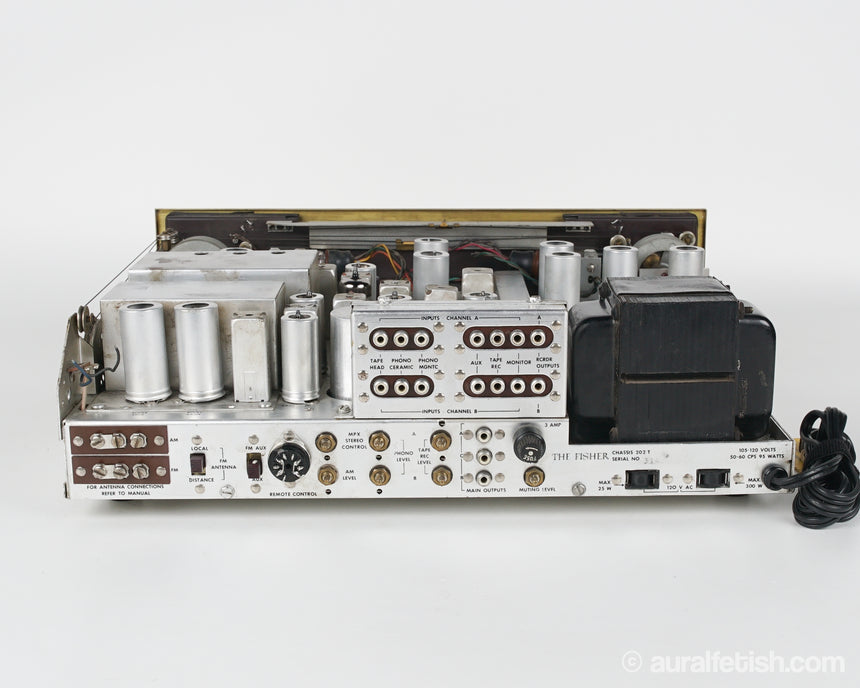

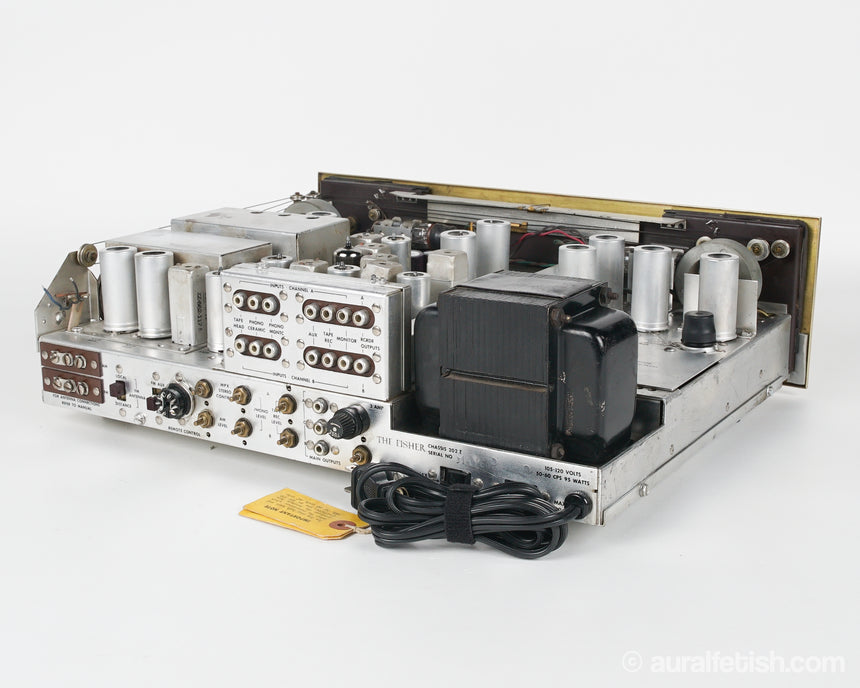

inputs 2x Tape head, 2x phono ceramic, 2x phono magnetic, 2x Aux, 2x tape recorder, and 2x monitor (12 total)

outputs 2x recorder, 2x main, 1x center (5 total)

Documentation

Fisher 202-T Sales Brochure

The History of Fisher
... many people conflate the acquisition with the change in branding, but the trademark request was actually filed by Mr. Fisher in 1965, and held up by other concerns who felt they had the right to use the "Fisher" name. The timing was a happy accident for collectors, who could then quickly discern the age...
[ Read More ]
Stock No.
6905754583208
